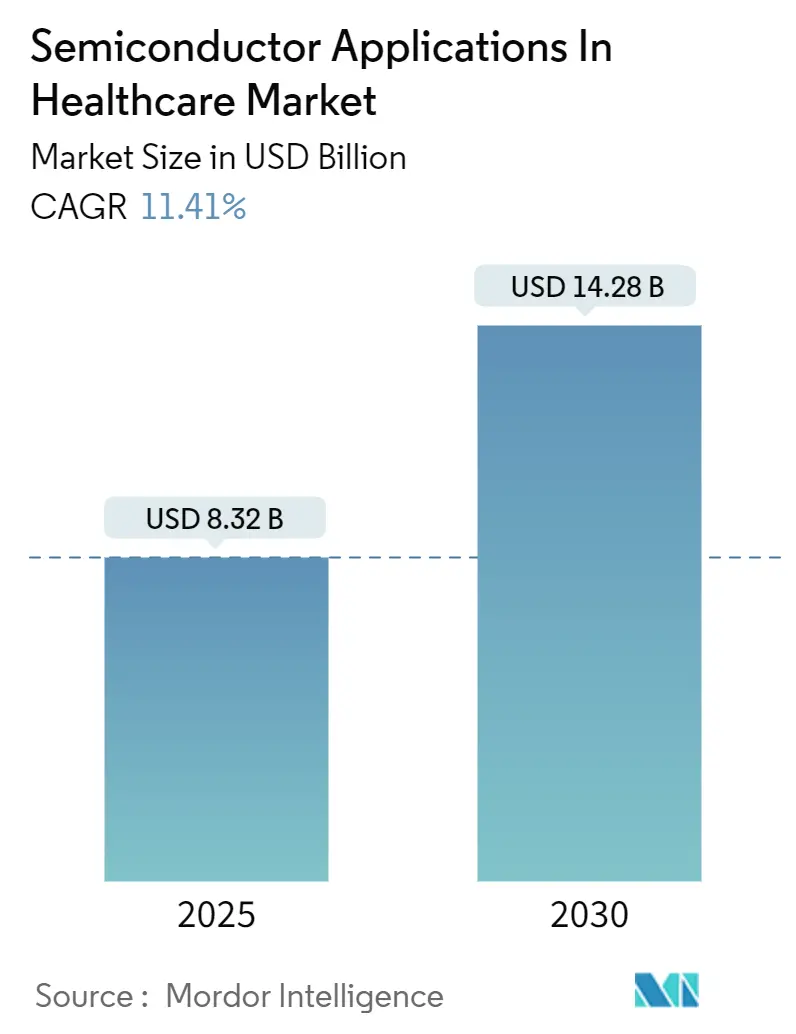

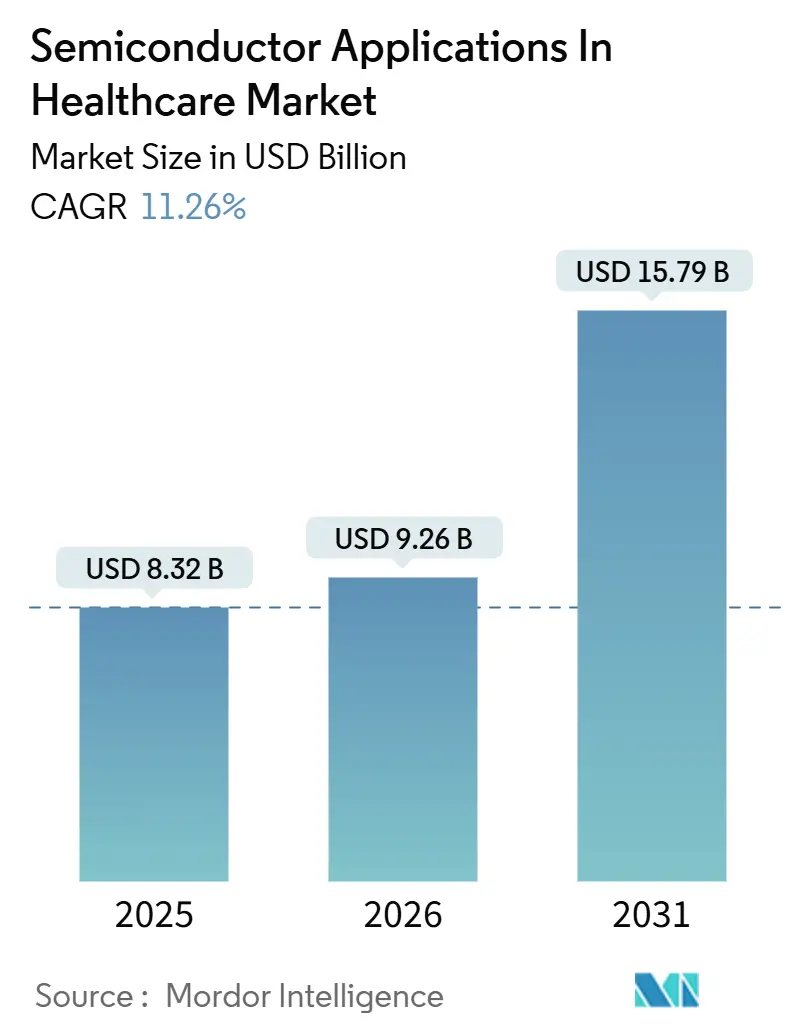

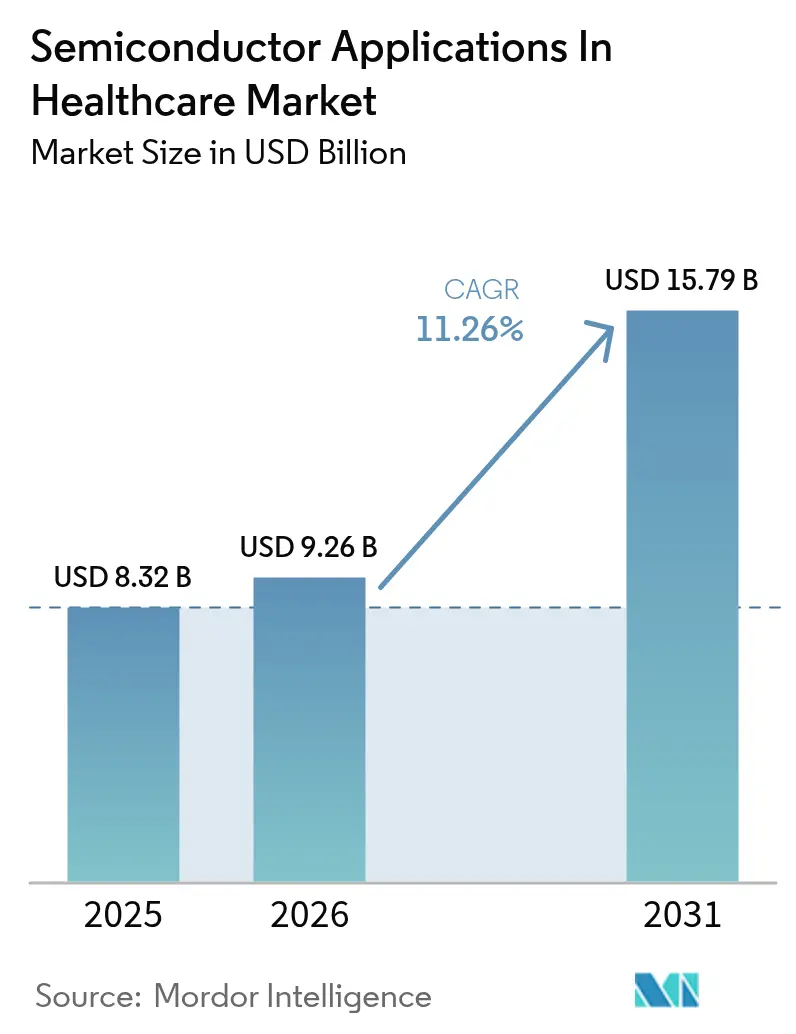

Global Semiconductor Applications In Healthcare Market Trends and Insights

Proliferation of Connected Medical Devices and IoT

Global hospital and home-care ecosystems now deploy smart monitors, infusion pumps, and ambient-assisted living tools that continuously log vital signs. These systems rely on wireless SoCs that merge Bluetooth LE, Wi-Fi 6, or 5G radios with sensor interfaces and encrypted storage while consuming microwatts during sleep cycles. Long-life coin-cell operation reinforces demand for energy-harvesting PMICs, prompting suppliers to co-optimize radio stacks and power domains. Device fleets also incorporate hardware root-of-trust modules, allowing clinicians to authenticate firmware updates. As reimbursement frameworks shift toward outcome-based models, providers are increasingly favoring edge-processed data that reduces latency and network congestion, thereby expanding the addressable silicon content per device.

Growing Adoption of AI-Enabled Imaging Systems

Radiology suites are transitioning from retrospective image reads to real-time decision support delivered on-console. Photon-counting CT scanners offer higher spectral resolution, thereby increasing the raw data volume and necessitating on-board accelerator arrays capable of executing image reconstruction and deep-learning algorithms in milliseconds. Semiconductor designers address this by pairing high-bandwidth HBM stacks with low-geometry logic dies within 2.5-D interposers, thereby boosting throughput while maintaining compact footprints. In parallel, compound-semiconductor detectors using gallium arsenide or perovskite materials deliver sharper contrast at lower radiation doses, creating back-end demand for specialized analog front-ends and high-voltage drivers.

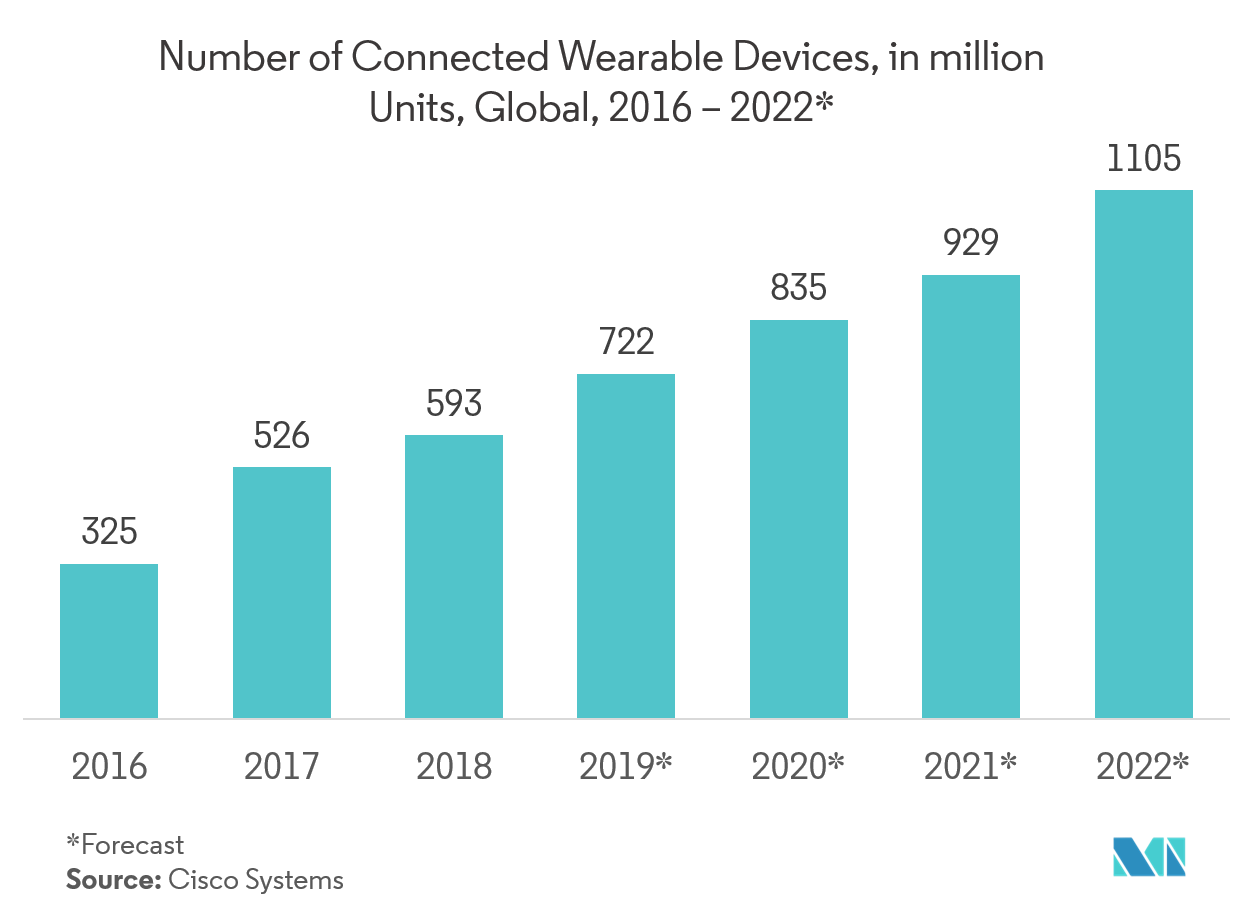

Rising Chronic-Disease Burden Driving Remote Monitoring

Aging populations and rising prevalence of cardiovascular and metabolic disorders press health systems to track patients beyond the clinic. Wearable patches equipped with multi-parameter biosensors operate on microcontrollers optimized for continuous event detection; some designs incorporate neuromorphic cores that learn individual baselines and flag anomalies without requiring cloud connectivity. Implantable cardiac monitors utilize bio-compatible hermetic packages and ultra-wideband telemetry to transmit arrhythmia data directly to physicians, thereby reducing the frequency of in-person visits. Secure over-the-air firmware updates enable algorithm refinement while devices remain in situ, extending their functional life and increasing the value of semi-content per deployment.

Government Incentives for Healthcare-Specific Fabs

The United States CHIPS and Science Act allocates USD 39 billion in manufacturing incentives, with multiple award applications referencing the expansion of medical-grade analog and mixed-signal capacity. ^{[1]Source: SEMI, “Global Semiconductor Industry Plans to Invest $400 Billion in 300 mm Fab Equipment,” semi.org} Texas Instruments broke ground on an additional 300 mm analog fabs, slated to supply long-lifecycle healthcare customers. Meanwhile, the National Advanced Packaging Manufacturing Program targets multichip module pilots suitable for implantable devices. In the European Union, the Chips Act allocates capital grants to secure a stable supply of life-critical components, pairing research and development funds with streamlined regulatory pathways that reduce validation cycles. Similar schemes in Japan and South Korea integrate fiscal support with workforce training for biomedical semiconductor specialists.

High Upgrade Costs for Legacy Medical Equipment

Many hospitals continue operating MRI scanners, bedside monitors, and infusion pumps purchased a decade ago, leaving limited capital for semiconductor-intensive upgrades. Original equipment manufacturers (OEMs), therefore, face pressure to release drop-in boards rather than entirely new systems, which slows the penetration of next-generation AI processors. Funding gaps are most acute in small private clinics and emerging economies, where reimbursements lag and procurement cycles extend well beyond Western averages. To counter the barrier, suppliers bundle financing packages and usage-based service models that amortize silicon costs over multi-year maintenance contracts.

Stringent Regulatory Approval Cycles for Chip Changes

Unlike consumer electronics, medical devices must maintain design history files and risk management reports for every hardware revision. Replacing even a memory component can trigger fresh safety and efficacy testing, adding 18–36 months to program timelines and discouraging rapid silicon node migrations. The U.S. Food and Drug Administration’s 510(k) and PMA pathways both demand comprehensive verification of cybersecurity and failure-mode scenarios, while Europe’s MDR layers additional post-market surveillance duties on manufacturers.^{[2]Source: U.S. FDA, “Design Control Guidance for Medical Device Manufacturers,” fda.gov} Semiconductor suppliers now embed long-term product availability commitments, sometimes exceeding 15 years, to reassure OEMs that approved bill-of-materials elements will remain in production.

Segment Analysis

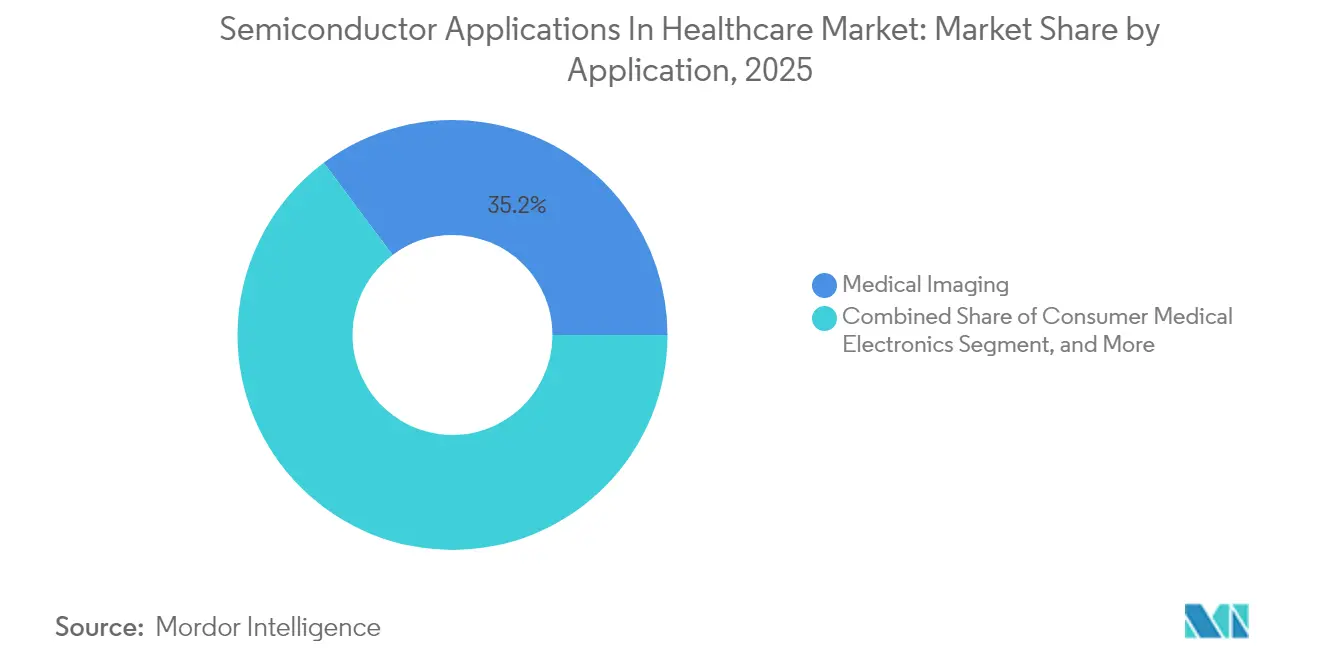

By Application: Medical Imaging Leads Innovation

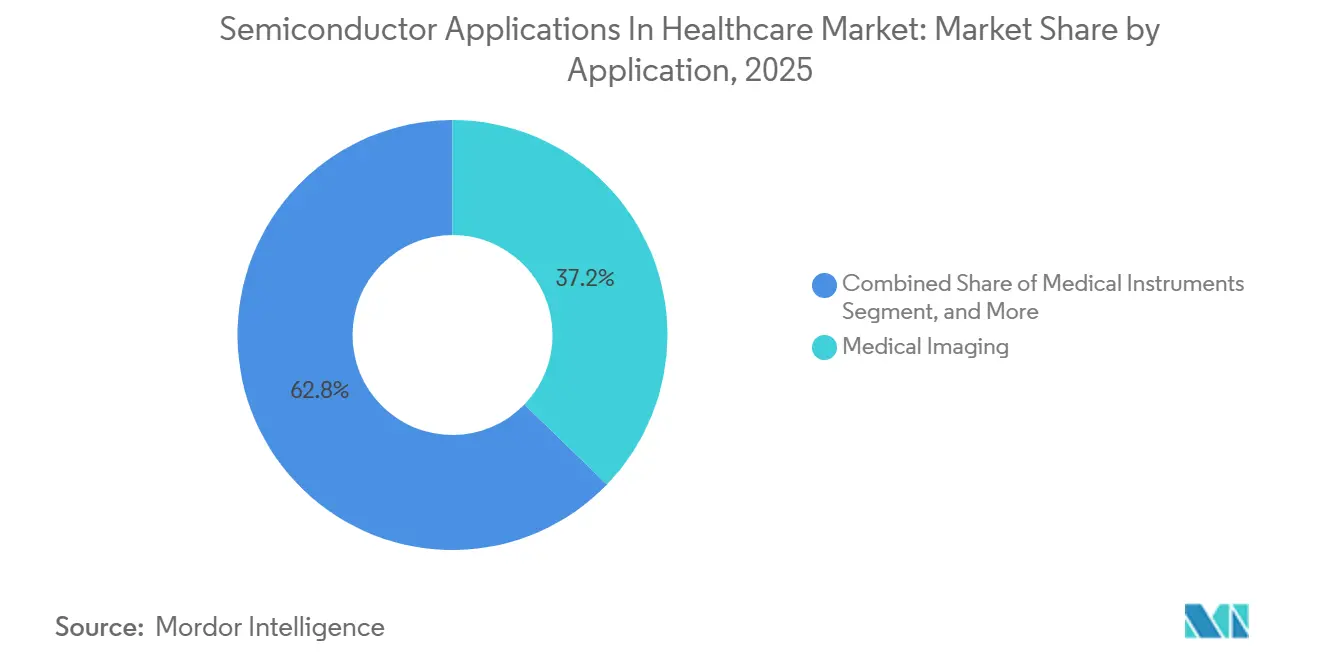

Medical imaging contributed 35.9% of 2024 revenue, underscoring its role as the core value generator for the semiconductor applications in the healthcare market. Within this arena, computed tomography, magnetic resonance imaging, and ultrasound consoles incorporate multi-die modules that combine high-resolution digitizers, field-programmable gate arrays, and AI accelerators. The migration toward spectral and photon-counting CT elevates processing demand, prompting OEMs to specify HBM-enabled SoCs that manage data rates exceeding 4 GB/s. Meanwhile, handheld ultrasound systems leverage single-chip integration to deliver point-of-care diagnostics in emergency settings. Forecast models indicate medical imaging will sustain a 12.3% CAGR in the semiconductor applications in the healthcare market by 2030.

Complementary growth stems from consumer medical electronics, where connected blood-pressure cuffs, glucose monitors, and ECG patches integrate secure radios and power-efficient microcontrollers. Diagnostic patient monitoring and therapy equipment also expand steadily as hospitals standardize on networked vital-sign hubs that stream data into electronic health records. Medical instruments remain a stable but less dynamic category, concentrating on laboratory automation that favors tried-and-tested 65 nm and above analog nodes for precision and longevity.

Note: Segment shares of all individual segments available upon report purchase

By Component: Integrated Circuits Dominate

Integrated circuits made up 78.8% of 2024 sales, reflecting their central role in consolidating multiple functions within tight board footprints. Analog front-ends handle biopotential amplification, high-speed converters digitize sensor outputs, and embedded processors run signal-conditioning algorithms often inside one package.

The sensors category, however, is advancing at 12.7% CAGR as novel photonic, MEMS, and biochemical transducers enter volume production. For example, optical blood-glucose sensors fabricated with III-V materials are moving from prototype to regulatory submission phases, adding incremental ASP lift. Optoelectronics contribute indispensable components to endoscopy lighting and optical coherence tomography, while discrete devices manage power, isolation, and patient-safety protection circuits.

By Technology Node: Mature Processes Remain Relevant

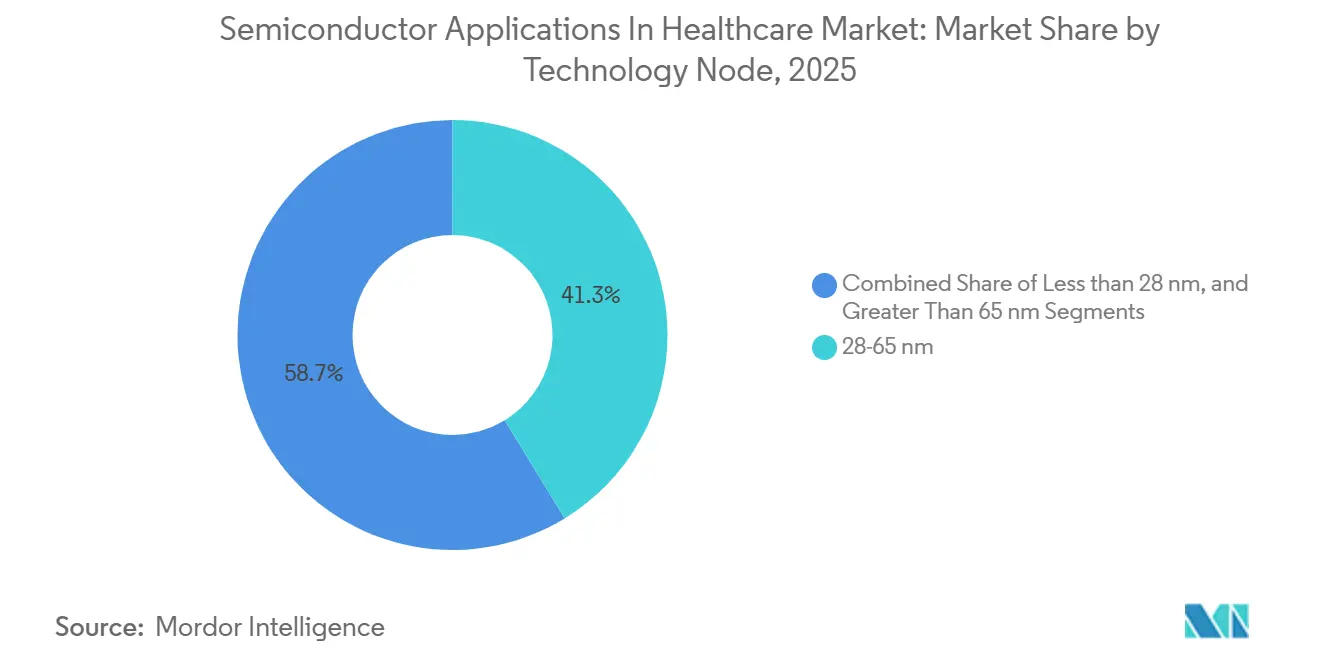

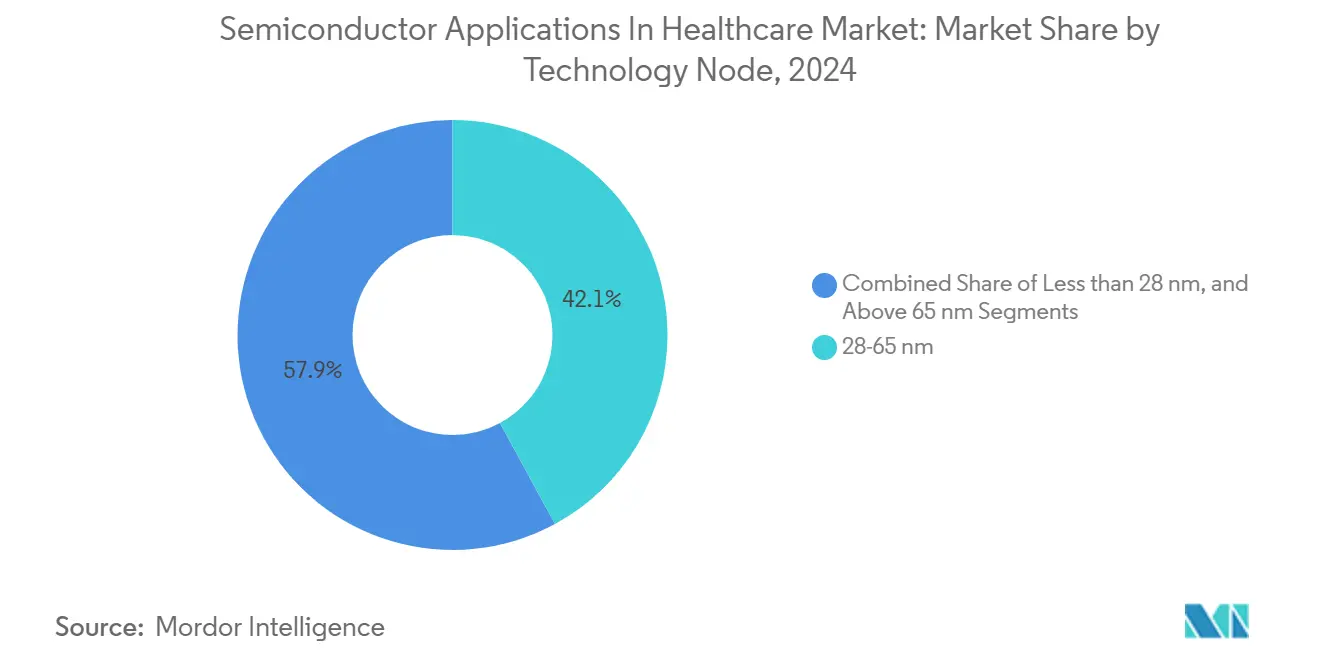

Although leading-edge sub-28 nm geometries attract attention, 28–65 nm processes still account for 42.1% of 2024 revenues in the semiconductor applications market for healthcare. Mature nodes deliver a proven balance of analog precision, radiation hardness, and cost stability traits that resonate with clinical buyers who demand decade-long product support.

Devices above 65 nm run life-critical power-management and isolation tasks, helping defibrillators and infusion pumps pass IEC 60601-1 leakage-current thresholds. Sub-28 nm nodes are gaining market share at a 11.9% CAGR, primarily driven by the integration of AI inference engines into imaging equipment and intelligent endoscopes. Suppliers mitigate validation risk by maintaining identical mask sets for 15 years or longer, thereby assuring customers that functional equivalence persists despite minor fab recipe refinements.

Note: Segment shares of all individual segments available upon report purchase

Geography Analysis

North America retains its leadership position, with 33.2% revenue in 2024, driven by a mature healthcare payer ecosystem that can reimburse premium diagnostics. Federal incentives have accelerated domestic analog and mixed-signal wafer starts, reducing lead times for FDA-cleared components. Academic-medical partnerships centered in California, Massachusetts, and Texas sustain a continuous pipeline of neuromodulation and implantable sensor prototypes that transition swiftly into clinical trials. However, export-control considerations on certain high-bandwidth AI accelerators introduce planning complexity for multinational OEMs shipping imaging consoles worldwide.

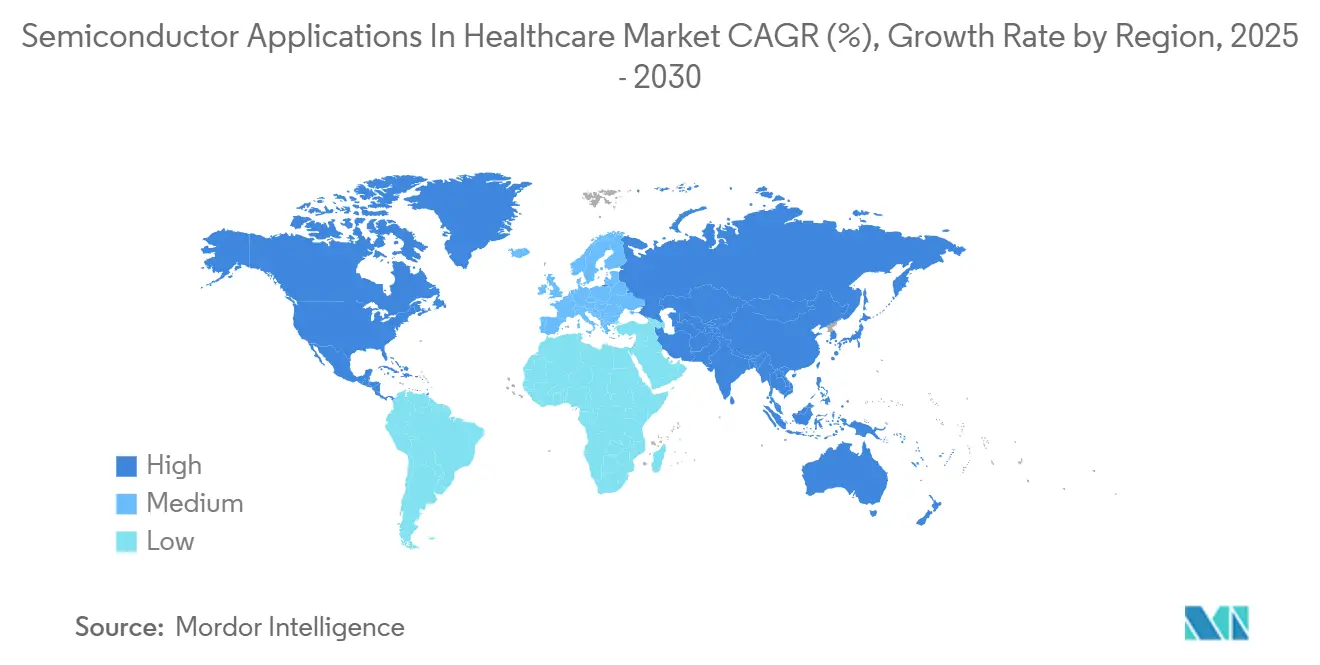

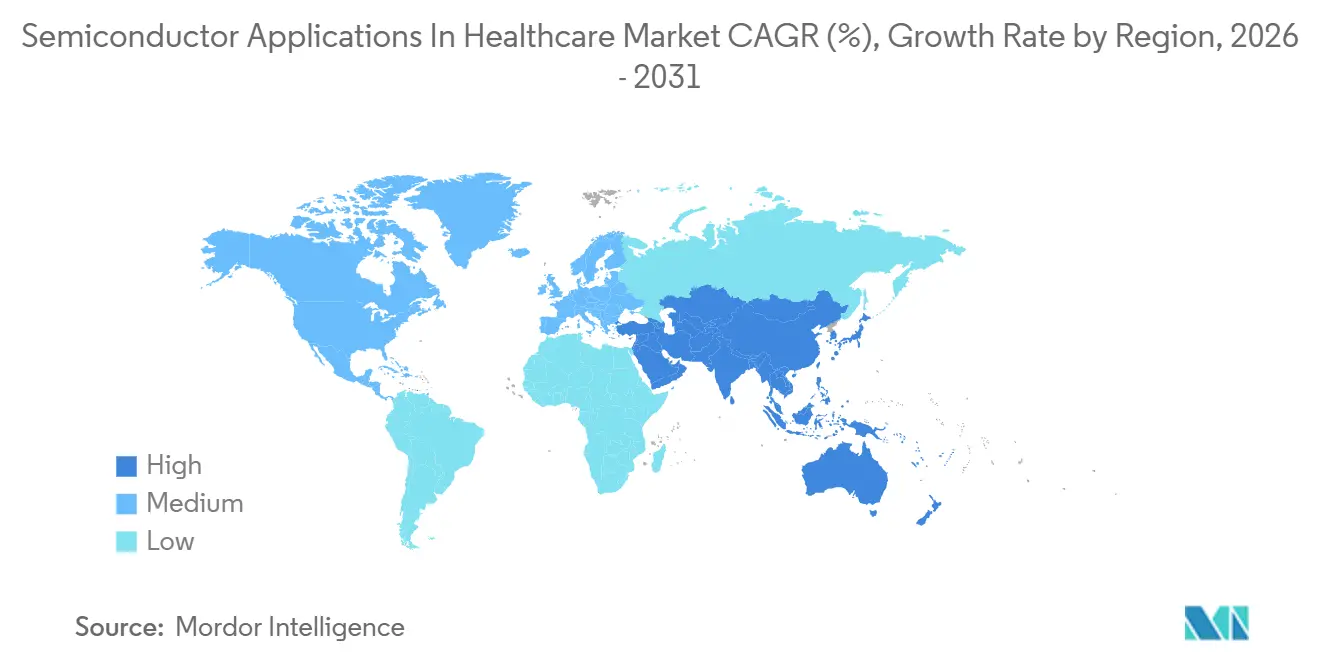

The Asia-Pacific region posts the fastest trajectory at a 13.5% CAGR, fueled by large-scale public investments in hospital infrastructure across China, India, and Southeast Asia. Shenzhen-based fabs specializing in medical-grade ASIC production now offer turnkey ISO 13485 assembly services, shortening design cycles for regional device startups. In India, government digital-health campaigns are spurring demand for cost-optimized SoCs that integrate Bluetooth LE and power-efficient RISC-V cores, enabling vital-sign collection in rural clinics. Japanese manufacturers emphasize precision and materials innovation; recent transitions to 8-inch SiC wafers support high-voltage supplies inside MRI gradient amplifiers.^{[3]Source: Semiconductor-Today, “Planned 8-inch SiC Wafer Fabs Worldwide Reach 14,” semiconductor-today.com}

Europe maintains a strong regulatory voice through its Medical Device Regulation, which shapes the requirements for component traceability and post-market surveillance. The EU Chips Act earmarks grants for packaging plants that adopt solvent-free die-attach chemistries to comply with impending PFAS restrictions.^{[4]Source: National Academy of Engineering, “Critical Needs for Non-PFAS Semiconductor Packaging Materials,” nae.edu} Pan-European purchasing consortiums increasingly weigh suppliers’ renewable-energy footprints, encouraging chipmakers to document carbon-reduction roadmaps. While overall growth trails that of the Asia-Pacific region, Europe’s emphasis on sustainability and data-protection compliance ensures consistent high-value orders for secure processing and encryption silicon.
