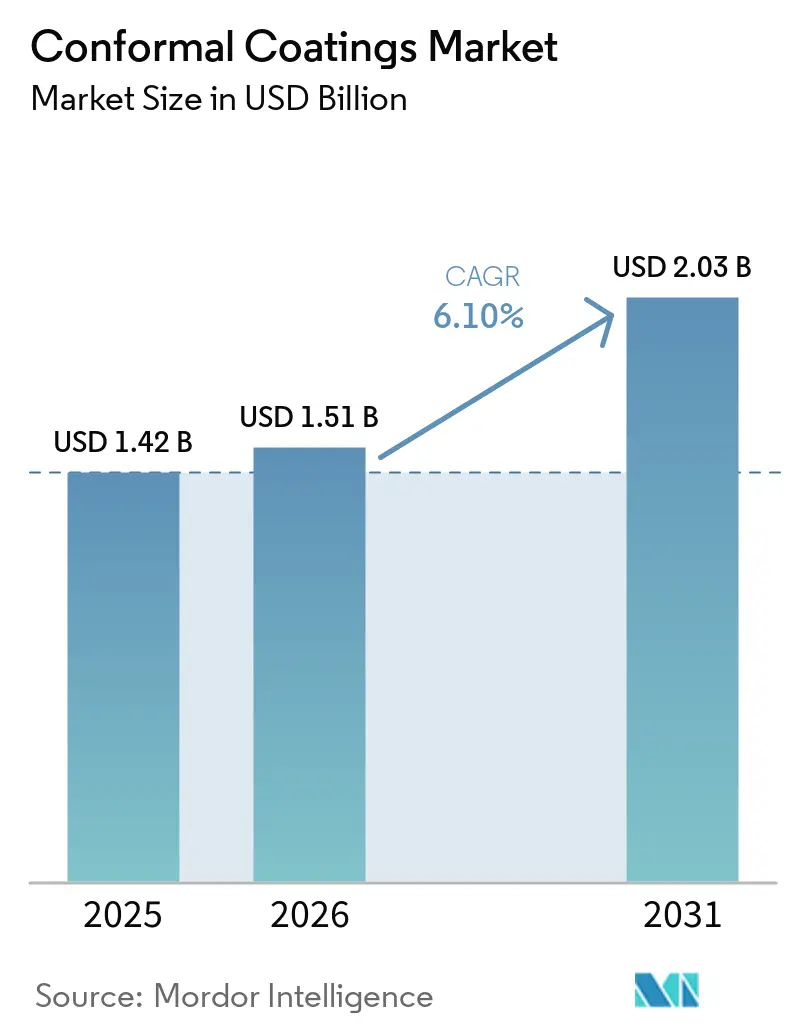

Conformal Coatings Market Size & Share Analysis - Growth Trends and Forecast (2026 - 2031)

Global Conformal Coatings Market Trends and Insights

5G Smartphones and IoT Wearables Require Mini-Circuit Protection

Sub-10 mm² RF front-ends and stacked passives leave little clearance, compelling coatings with dielectric constants below 3 and ±5 µm thickness control to prevent impedance drift. Wearables demand biocompatible films that survive 100,000 flex cycles yet retain IPC-CC-830C Class 3 reliability. Contract assemblers in Vietnam and India saved 40% of material by switching to selective robotic dispensing, eliminating manual masking on camera modules and flexible OLED driver boards. DuPont’s Interconnect Solutions reported low-double-digit organic growth in Q3 2024 on the back of these ramps. Manufacturers also pair UV-cured topcoats with transparent acrylic under-layers to speed cure and preserve AOI visibility.

LEO Satellites and Avionics Electronics Need High-Performance Coatings

More than 10 000 LEO satellites slated for launch between 2024 and 2030 each carry 50–200 boards that must withstand atomic oxygen, −150 °C to +125 °C cycling, and 100 krad radiation environments. Parylene and fluoropolymer nano-coatings deliver dielectric strength above 5 kV/mm and outgassing below 1% total mass loss, surpassing Type AR acrylics. Henkel logged double-digit electronics growth in China during 2024, partially tied to avionics programs. Aerospace OEMs now qualify silicone systems for fly-by-wire control at 15 000 m where low pressure invites corona discharge. Automated vacuum deposition lines with ±0.1 mm accuracy improve first-pass yield to 98% on phased-array modules.

Regulatory Shift to RoHS-Compliant Low-VOC Water/UV Systems

EU Directive 2011/65/EU and REACH cap 420 g/L VOC, pushing formulators toward water-based acrylics and UV-curable silicones ^{[1]European Commission, “Directive 2011/65/EU on the Restriction of Hazardous Substances,” eur-lex.europa.eu} . Such chemistries account for 45% of 2025 European product launches but raise process headaches, including 30-60 minute cure windows for water systems and limited under-component wet-out for UV. Shin-Etsu’s KRW-6000 water-based silicone cures in 30 minutes at 150 °C while maintaining stability above 200 °C. China’s GB/T 26572 and India’s 2024 e-waste draft rules mirror EU limits, demanding IPC-1752A declarations that add 5-10% compliance cost for EMS providers. Suppliers must also track lot-level composition to satisfy Industry 4.0 traceability matrices.

Expansion of Telecom Infrastructure and 5G Rollout

Global 5G macro base stations passed 5 million in 2024, and India alone targets 200 000 sites by 2026. Outdoor radios face 95% RH and acid-rain pollutants that accelerate electrochemical migration. Acrylic or silicone coatings reduce field failures, doubling MTBF to 100 000 hours. South Korean vendors cut coating consumption 35% by swapping dip tanks for robotic dispensers focused on RF power amplifiers. Open RAN diversification is injecting Tier-2 suppliers that demand sub-USD 1 per-board coating cost and instant cure. UV-LED tunnels consuming less than 1 kWh per hour offer a path to lower energy bills and carbon footprints.

Rework/Inspection Complexity of UV-Cured Opaque Films

Opaque UV coatings cure within seconds, yet block AOI cameras from verifying solder joints required under IPC-A-610 Class 3. Mechanical abrasion or plasma is often the only route to remove misapplied films, risking pad lift on fine-pitch QFNs. Hybrid lines now apply transparent UV material on AOI-critical zones and pigmented coating elsewhere, adding 15% overhead in fixtures and recipes. Nordson’s Select Coat SL-1040 logs nozzle flow and UV dose to cut rework under 1%. EMS players still cite 2-4 hour training curves for technicians switching from solvent to UV systems.

Silicone-Monomer Price Volatility

Siloxane intermediates trace back to metallurgical silicon and copper catalysis, commodities that swung 25–30% in 2024 amid Chinese energy curbs. Spot purchases can erode coating formulators’ gross margin by 300 bps. Shin-Etsu allotted USD 700 million to expand silicone output 15–20% by 2026 across four continents. Still, electronic-grade monomer lead times extended to 16 weeks, competing with LED encapsulants and medical gels for the same feedstock. Tier-1 automakers increasingly hedge with multisource contracts that bake in quarterly price adjustments to trim exposure.

Segment Analysis

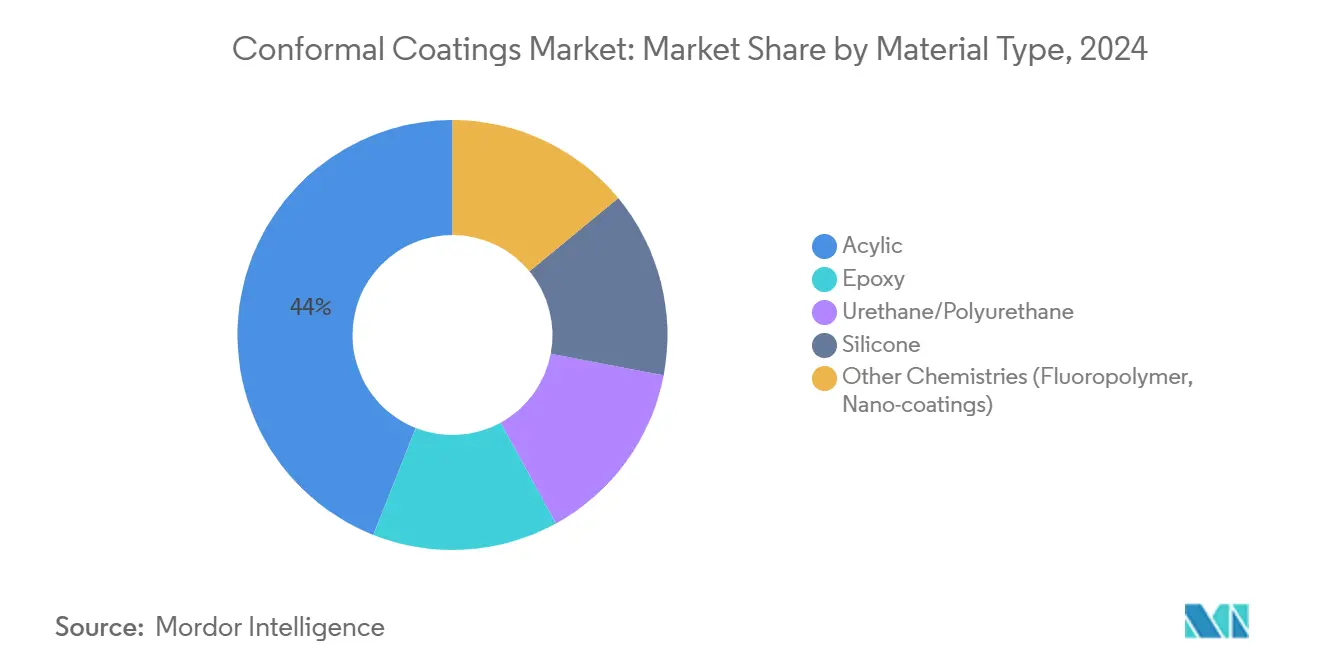

By Material Type: Acrylic Dominance Meets Silicone Specialization

Acrylics led the conformal coatings market with 44.24% share in 2025 and are forecast to grow at 6.88% CAGR as assemblers value low cost, broad compatibility, and easy rework. Silicone chemistries, meanwhile, deliver −60 °C to +200 °C stability and low modulus that preserves solder joint integrity under thermal cycling, justifying premium pricing. Epoxies remain entrenched in under-hood automotive boxes for their chemical resistance, although brittleness limits take-rate. Urethanes and polyurethanes win in foldable devices demanding flex life above 100,000 cycles. Emerging fluoropolymer nano-coatings are logging demand for sub-10 µm films with contact angles more than 110° that repel sweat in wearables.

Silicone’s KRW-6000, launched by Shin-Etsu in 2024, marries water dispersibility with 30-minute cure at 150 °C, answering OEM calls for RoHS compliance without throughput penalties. Total cost-of-ownership now dictates material decisions, blending raw resin price with capital, cure-energy loads, and end-of-life disposal under extended producer rules in Europe and Japan. IPC-CC-830C Type AR and Type SR products account for 75% of market qualifications, yet the 2024 IPC-HDBK-830A update formally added fluoropolymer guidance, foreshadowing next-gen adoption. Advanced hybrids, such as dual-cure epoxy-acrylate blends, target BMS power modules requiring 4 kV/mm dielectric strength and ≥1 W/mK thermal conductivity.

Note: Segment shares of all individual segments available upon report purchase

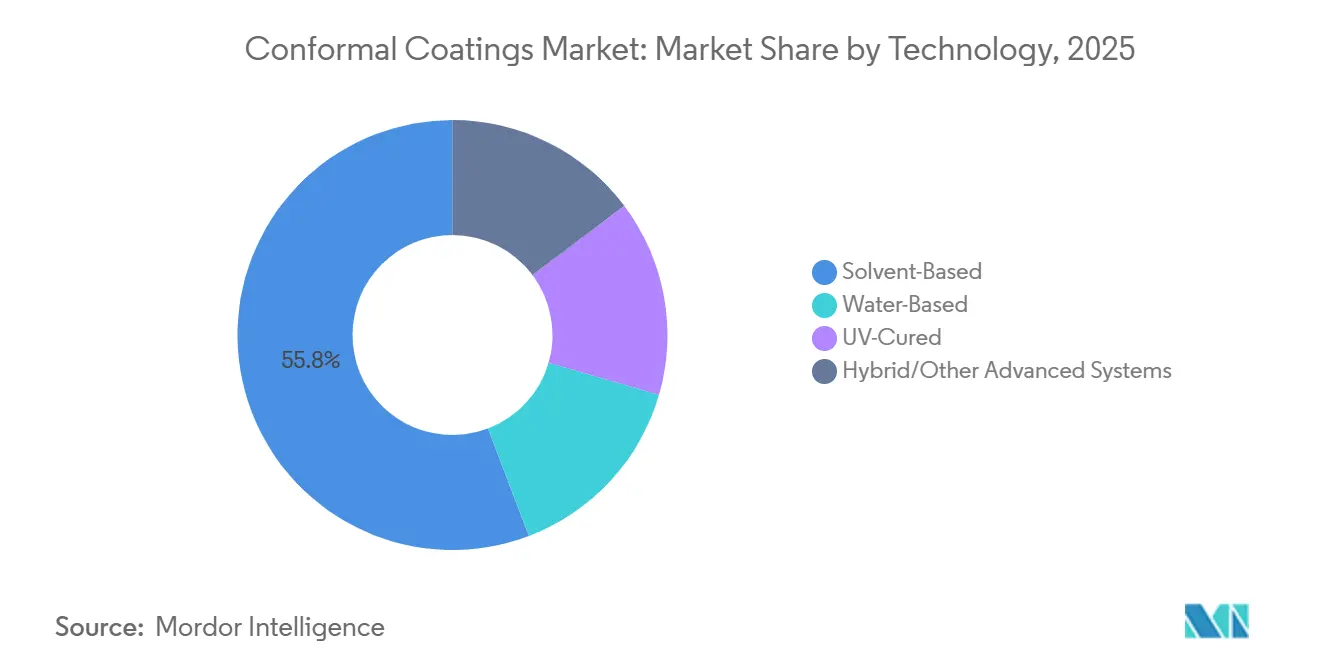

By Technology: Solvent-Based Legacy Faces UV-Cured Disruption

Solvent-based still occupy 55.78% of the conformal coatings market size in 2025, owing to broad wetting and established approvals across automotive PPAPs. UV-cured, however, are accelerating at 7.13% CAGR through 2031, driven by zero-VOC status, one-second cures, and energy savings that cut oven power by 80%. Water-based systems gain favor where regulation trumps throughput, rising to nearly one-fifth of volume despite 60-minute dry times at 80 °C. Hybrid chemistries serve potting and encapsulation roles in high-voltage inverters.

EMS giants in Vietnam installed over 200 UV-LED tunnels in 2024 to coat smartphone antennas and wireless charging coils, trimming floor space 30%. Automotive trials on LiDAR modules show UV silicones slicing tack-free time from 45 minutes to 60 seconds while sustaining MIL-STD-810H performance. Nordson’s Q2 2024 saw Industrial Precision Solutions rise 2% on coatings equipment even as semiconductor demand sagged 22% in its Advanced Technology arm. Persistent barriers include opaque-film AOI limits, but integration of in-situ fluorometry now validates 50 µm thickness in real time, mitigating defects before cure.

Note: Segment shares of all individual segments available upon report purchase

By Operation Method: Selective Coating Gains on Spray Incumbency

Spray coating (atomised/film) dominated with 60.25% share in 2025, leveraging low capital and operator familiarity. Yet other methods (selective/robotic dispense and chemical vapour deposition (CVD)) are expanding at 6.93% CAGR as zero-waste mandates take hold. Dip tanks remain viable for commodity power supplies, though they necessitate extensive masking that drives labor cost.

Nordson’s Select Coat SL-1040 mixes dual and triple valves plus ultrasonic nozzle cleaning to sustain throughput above 80 boards/minute, a leap unattainable by manual spray. CVD parylene delivers pinhole-free encapsulation, enabling dielectric performance in aerospace, but faces 4-8 hour batch cycles and more than USD 500,000 per vessel. Hybrid lines pairing selective coat for high-value smartphone logic boards and spray for LED drivers now appear in Chinese and Mexican EMS plants, optimizing capital amortization across mixed portfolios.

Note: Segment shares of all individual segments available upon report purchase

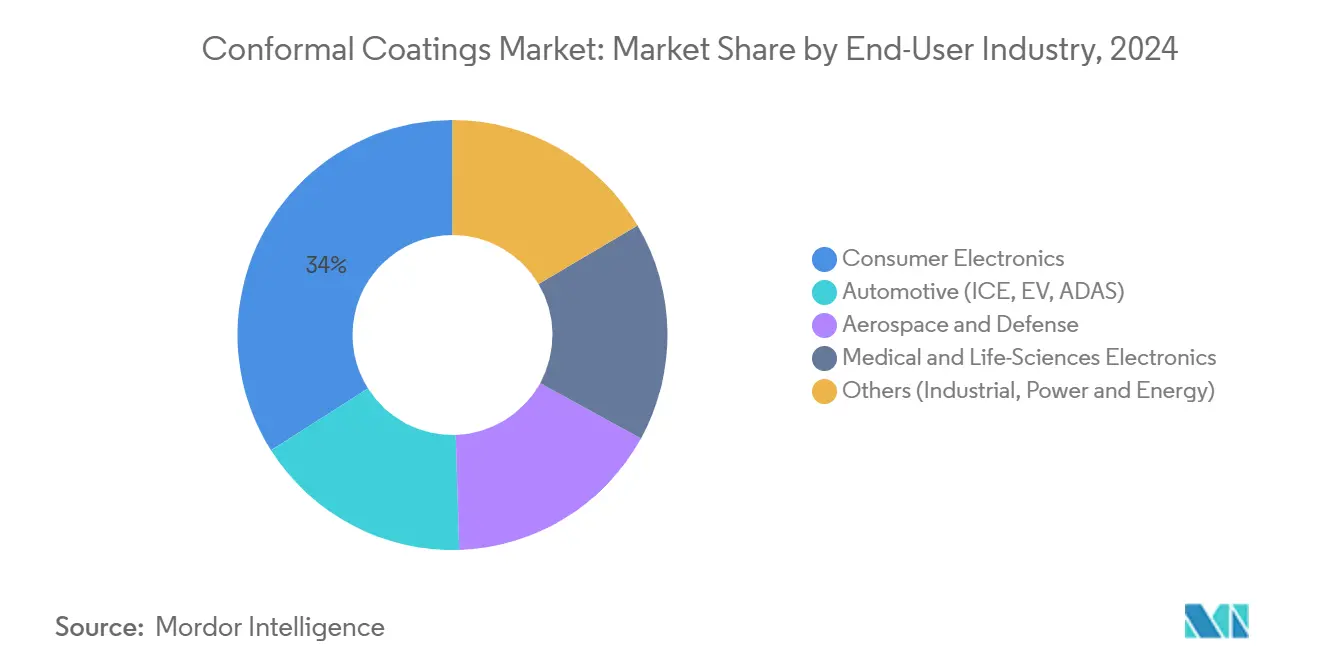

By End-user Industry: Consumer Electronics Drives Volume and Innovation

Consumer electronics held 34.89% conformal coatings market share in 2025 as smartphone and smartwatch volumes rebound post-inventory correction. Consumer electronics is also growing at 6.88% CAGR, propelled by 400 V and 800 V electronic platforms demanding ≥4 kV/mm insulation. Aerospace and defense, although a smaller slice, is commanding premium prices for mission-critical reliability. Medical device electronics require ISO 10993 biocompatibility and sterilization resilience, steering usage toward parylene and silicones.

Texas Instruments’ BQ79616-Q1 BMS IC shows the reliability bar—ASIL-D and ISO 26262 compliance—that drives coating needs in 800 V packs. Infineon’s BMS silicon across 12 V to 1 200 V classes imposes distinct creepage distances that coatings must bridge without raising parasitic capacitance. Industrial power electronics, including solar inverters and wind converters, capture moderate demand as renewable rollouts climb. DuPont’s Electronics & Industrial segment rose 13% Y/Y in Q3 2024 on AI server and handset recovery, underlining cross-segment tailwinds.

Note: Segment shares of all individual segments available upon report purchase

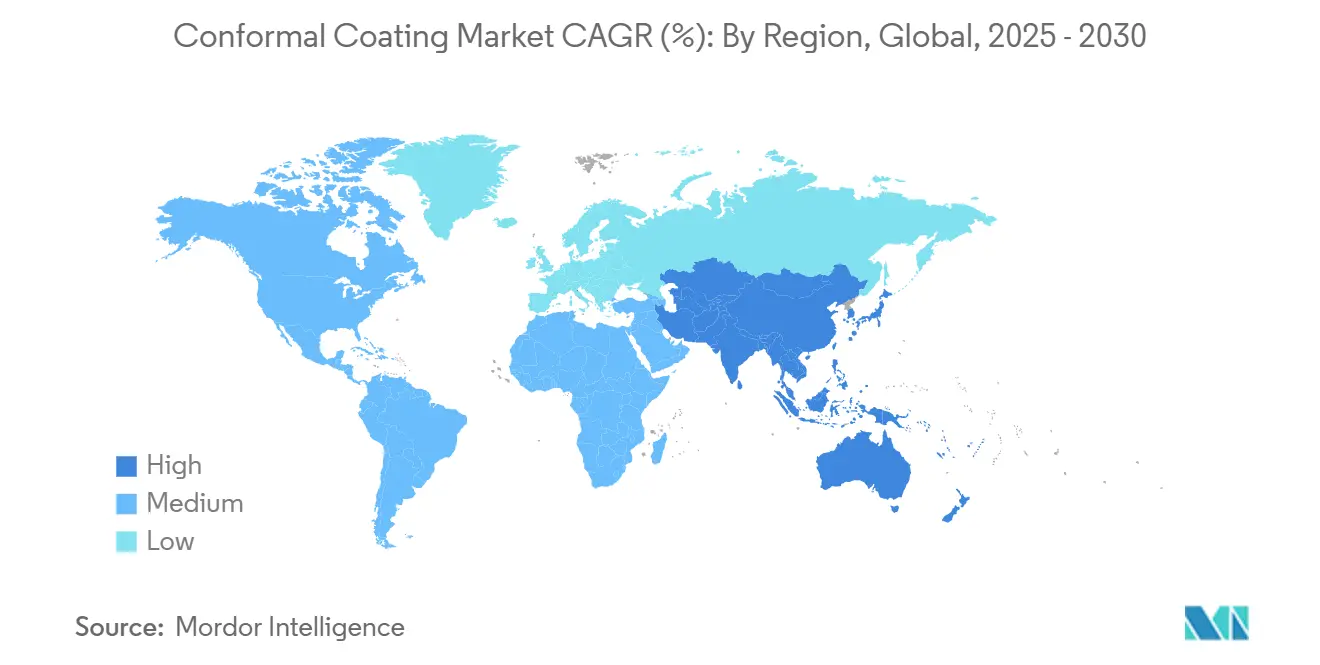

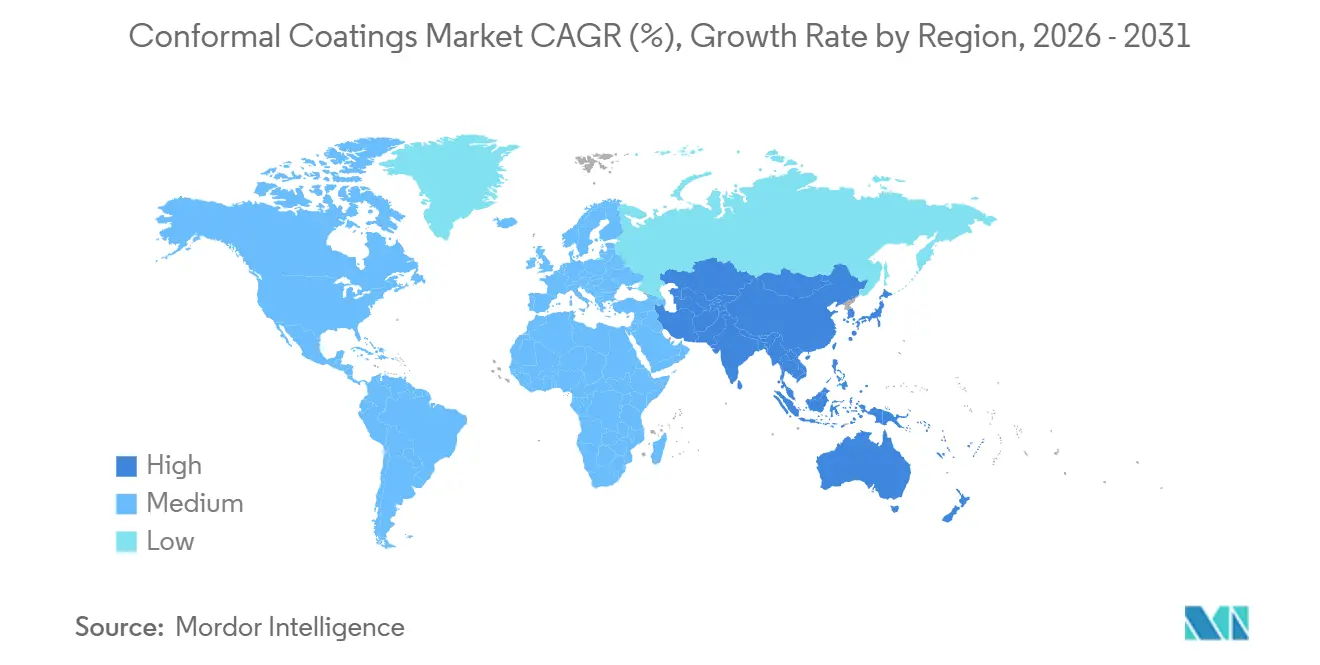

Geography Analysis

Asia-Pacific generated 42.35% of conformal coatings market revenue in 2025 and is accelerating at 7.67% CAGR through 2031. China rebounded in 2024 as smartphone and data center projects resumed, with Henkel citing double-digit electronics growth. ASEAN nations secured USD 31 billion electronics FDI in 2024, cementing their role as back-end semiconductor hubs. India’s PLI incentives and 5G base-station buildout are spurring RoHS-compliant coating lines tied to Bureau of Indian Standards approvals. South Korea and Japan remain innovation centers for flex displays and automotive electronics, prompting suppliers to open tech centers in Seoul and Tokyo.

North America’s demand is supported by aerospace, defense, and EV manufacturing. The CHIPS and Science Act and Inflation Reduction Act will funnel more than USD 100 billion toward domestic fabs through 2030, boosting demand for IPC-qualified coatings ^{[2]U.S. Department of Commerce, “CHIPS and Science Act Funding Fact Sheet,” commerce.gov} . 3M’s Electronics division launched 169 new products in 2024, showing a push for protective materials in semiconductor packaging. Mexico’s Baja California corridor is becoming an EV electronics hot spot, while Canada’s Montréal cluster services avionics coating needs.

In Europe, Germany, France, and the United Kingdom enforce strict RoHS and REACH standards, propelling water-based and UV chemistries. Dow’s Performance Materials & Coatings reported USD 8.497 billion sales in 2023, with silicones serving European auto and industrial clients. Nordic EV battery gigafactories and offshore wind converters need salt-fog-resistant coatings. South America and the Middle East and Africa remain nascent but are growing as Brazil’s auto sector and Saudi smart-city projects specify protective films for harsh climates.
