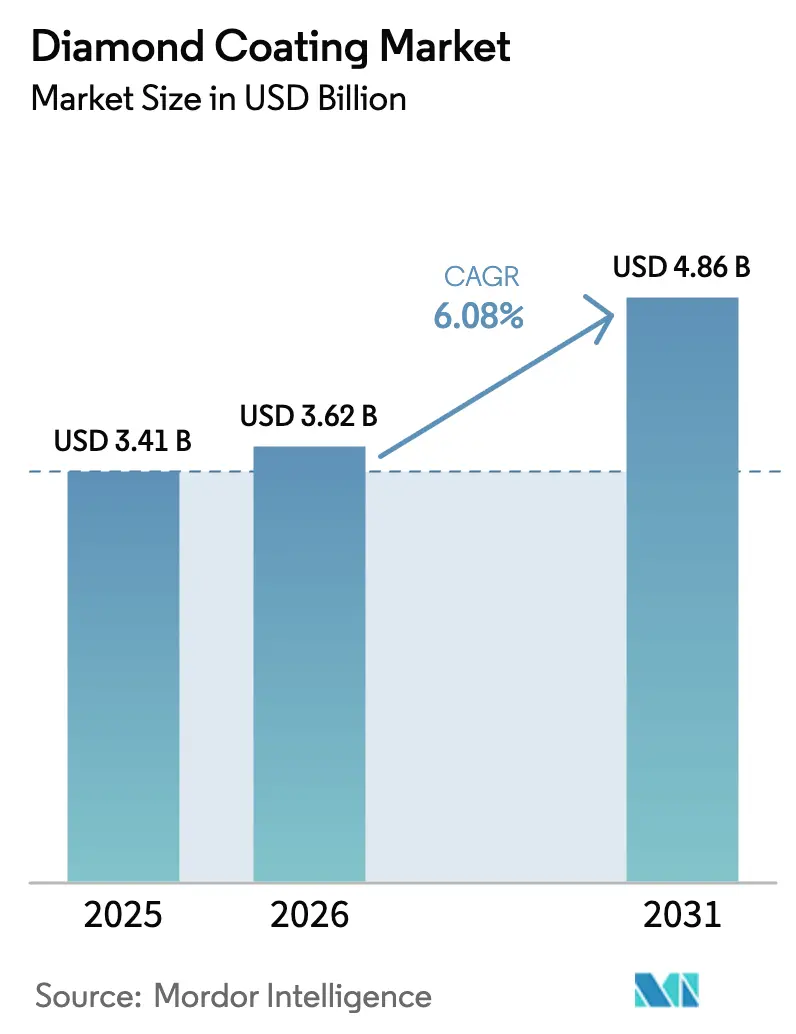

Global Diamond Coating Market Trends and Insights

Surging Adoption in Cutting Tools for Light-Weight Composites

Machining carbon-fiber reinforced plastics generates abrasive dust that blunts conventional carbide inserts after limited passes. CVD diamond-coated cutters last 15-30 times longer, shaving tool-change downtime and scrap on aerospace composite structures^{[1]Crystallume, “Diamond-Coated Tools for CFRP Machining,” crystallume.com}. Dual-layer micro-crystalline/nano-crystalline stacks further suppress crack propagation, lowering delamination risk on wing panels and automotive body panels As Boeing and Airbus lift composite content, suppliers specify diamond coatings to achieve clean edges at high spindle speeds. The result is rising unit demand for diamond-ready drills, routers, and end mills across North America and Europe. Medium-term growth remains secure because the installed fleet of composite airframes is still young and spare-parts machining volumes are only beginning to scale.

Growing Demand for Thermal-Management Solutions in Consumer Electronics

Data-center GPUs now dissipate beyond 700 W per module, forcing operators to rethink baseplate materials. Copper-diamond composites delivering 800 W/mK thermal conductivity cut core temperatures by up to 20 °C in pilot AI servers deployed by Akash Systems under a USD 27 million supply contract. Laboratory single-crystal diamond spreaders reach 1,500-2,200 W/mK, far eclipsing copper at 400 W/mK, creating a clear performance gap that favors adoption. Fraunhofer USA’s flexible diamond nanomembranes promise five-fold faster EV battery charging by extracting heat from power electronics more efficiently. The collision of miniaturisation and higher power density therefore keeps thermal-grade diamond coatings firmly on the procurement road-maps of smartphone, laptop, and datacenter OEMs. Short-term pull is strongest in Asia-Pacific where volume device assembly occurs.

Accelerating Use of Diamond-Coated Surgical and Dental Tools

Diamond-like carbon scalpels retain sharpness after repeated autoclave cycles, reducing replacement frequency for hospitals already facing staffing cost pressure. DLC exhibits an adhesion strength of 24 N versus traditional black chrome at roughly 9 N, a jump that eliminates edge flake failures during neurosurgery. University of Alabama Birmingham studies show orthopedic implants coated with nanodiamond last two to three times longer than cobalt-chrome devices, potentially outliving a 30-year postoperative horizon. FDA clearance of nano-scaled diamond finishes reassures OEMs about cytotoxicity, widening the application range to cardiovascular stinting and dental burrs. As aging populations in the United States, Germany, and Japan raise hip and knee replacement counts, demand for long-wear coatings climbs correspondingly.

Regulatory Push for Lead-Free Precision Soldering Equipment

RoHS and REACH restrictions push electronics brands to completely remove lead from tin-based solder. The switch lifts reflow temperatures by 30-40 °C, accelerating wear on conventional iron plating. Diamond-coated tips withstand this thermal shock, retaining wetting performance across extended duty cycles. Japanese industry standards now codify DLC thickness and hardness requirements, giving OEMs a blueprint for global sourcing. The EU’s pending Ecodesign updates further reinforce adoption by penalising early failure of assembly equipment. Long-term impact is therefore positive, especially for contract manufacturers servicing automotive and medical device boards where zero-defect solder joints are mandatory.

High Capital Investment and Long Payback Periods

A single three-chamber CC800 Diamond unit from CemeCon costs multiple millions of USD and demands customised exhaust, gas handling, and clean-room retrofits^{[2]CemeCon, “CC800 Diamond Coating System,” cemecon.com}. SMEs therefore struggle to justify outlays when cutting-tool clients resist premium pricing. Even for large foundries, depreciation stretches beyond five years, lengthening return horizons. Financing has become more selective, with lenders scrutinising utilisation rates before approving leases. In emerging markets the hurdle is steeper because local electricity and skilled-labour costs narrow operating margin cushions. These realities shave near-term adoption, particularly outside tier-one suppliers.

Adhesion Challenges on Temperature-Sensitive Substrates

DLC deposition typically exceeds 280 °C, a threshold that induces residual stress on aluminum and some surgical-grade steels. Delamination risk rises when thermal expansion mismatch creates shear forces at the interface. Researchers now explore chromium-nitride or vanadium-carbide interlayers to buffer these stresses, yet each additional layer adds cost and process steps. Low-temperature plasma-enhanced CVD variants show promise but scale-up remains limited. Medical and consumer electronics OEMs therefore wait for broader proof before committing high-volume orders, dampening mid-term growth.

*Our forecasts treat driver/restraint impacts as directional, not additive. The impact forecasts reflect baseline growth, mix effects, and variable interactions.

Segment Analysis

By Technology: CVD Reinforces Market Leadership

CVD processes commanded 66.70% of 2025 revenue, and this slice of the diamond coating market is forecast to climb at a 6.74% CAGR to 2031. The technique’s ability to tailor grain size, build dense films, and hit thickness uniformity below ±3 µm keeps it at the core of high-performance cutting-tool and heat-spreader production. Element Six’s 800 W/mK copper-diamond composite illustrates how CVD can embed diamond grains in metal matrices without voids, unlocking rapid heat flow for AI processors. Graphene-oxide assisted growth now accelerates deposition by 35%, trimming cycle time and lowering per-wafer costs. PVD holds niche positions where 150-200 °C limits protect sensitive electronics boards or polymer substrates. Even so, incremental improvements in plasma-enhanced variants are expected to narrow the performance gap, allowing PVD to court medical OEMs that cannot tolerate the higher temperatures of conventional CVD. Together, both methods secure the technological backbone of the diamond coating market.

By Coating Type: DLC Dominance with Emerging Composites

DLC films held a commanding 78.92% share of 2025 revenues due to their low coefficient of friction and cost-effective batch production. Friction coefficients as low as 0.029 have been reported for molybdenum-doped DLC, illustrating the capacity to further tune performance through elemental additions. Composite and doped structures, the fastest grower at 6.9% CAGR, marry hardness with customized electrical or thermal conductivity for niche roles in quantum devices and high-frequency RF amplifiers. Polycrystalline diamond remains essential for mechanical seals in aggressive chemical pumps, where its isotropic toughness outperforms brittle ceramics. Nano- and micro-crystalline variants serve optics and precision metrology that demand sub-micron surface roughness. This diverse portfolio lets suppliers match film chemistry to each application, underpinning the broad appeal of the diamond coating market.

By End-user Industry: Electronics Anchors Demand, Medical Gains Speed

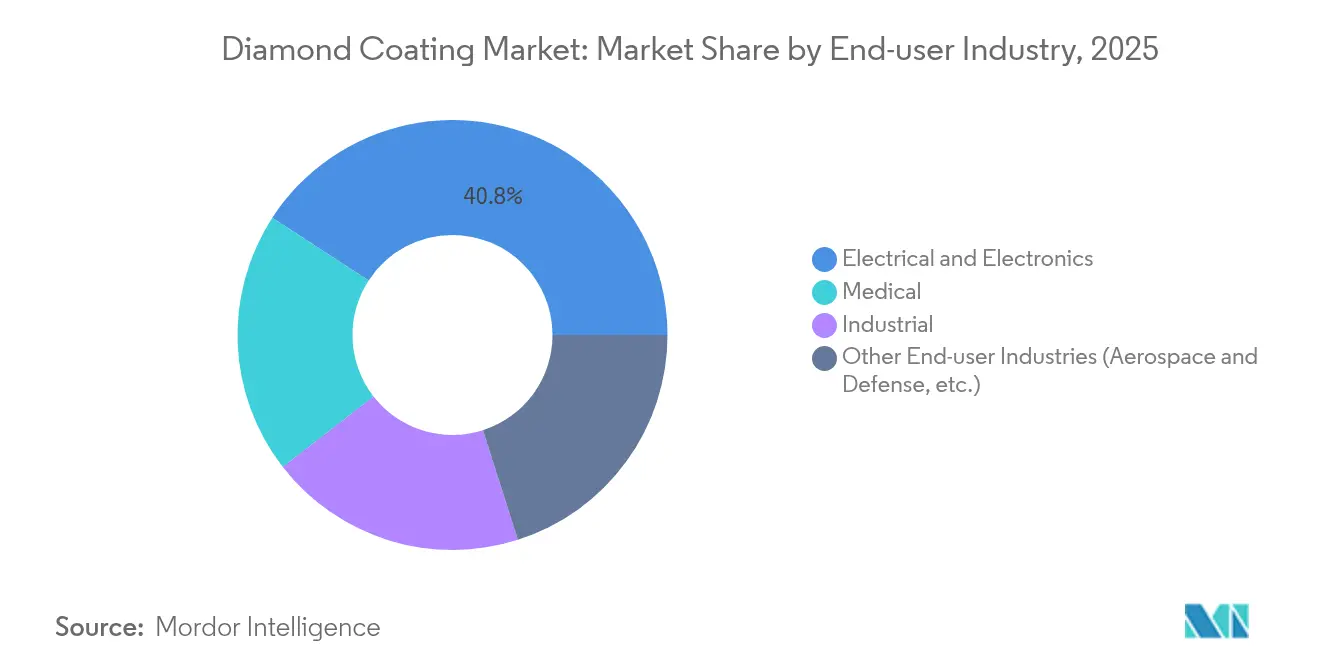

Electrical and electronics buyers generated 40.82% of 2025 turnover, reflecting relentless thermal-management challenges in semiconductors, power modules, and consumer devices. With the diamond coating market size for electronics components projected to expand at 6.47% annually, coating vendors see steady pull from foundries and datacenter builders. Medical equipment, however, is increasing 7.22% per year, outpacing all other sectors as aging societies drive joint-replacement and minimally invasive surgery volumes. Industrial tooling and wear parts still contribute steady baseline demand, while aerospace and defense customers tap super-abrasive films to mill lightweight composites at production rates impossible a decade ago. The cross-pollination of techniques between electronics and medical segments further accelerates innovation, illustrating the interconnected nature of the diamond coating industry.

Geography Analysis

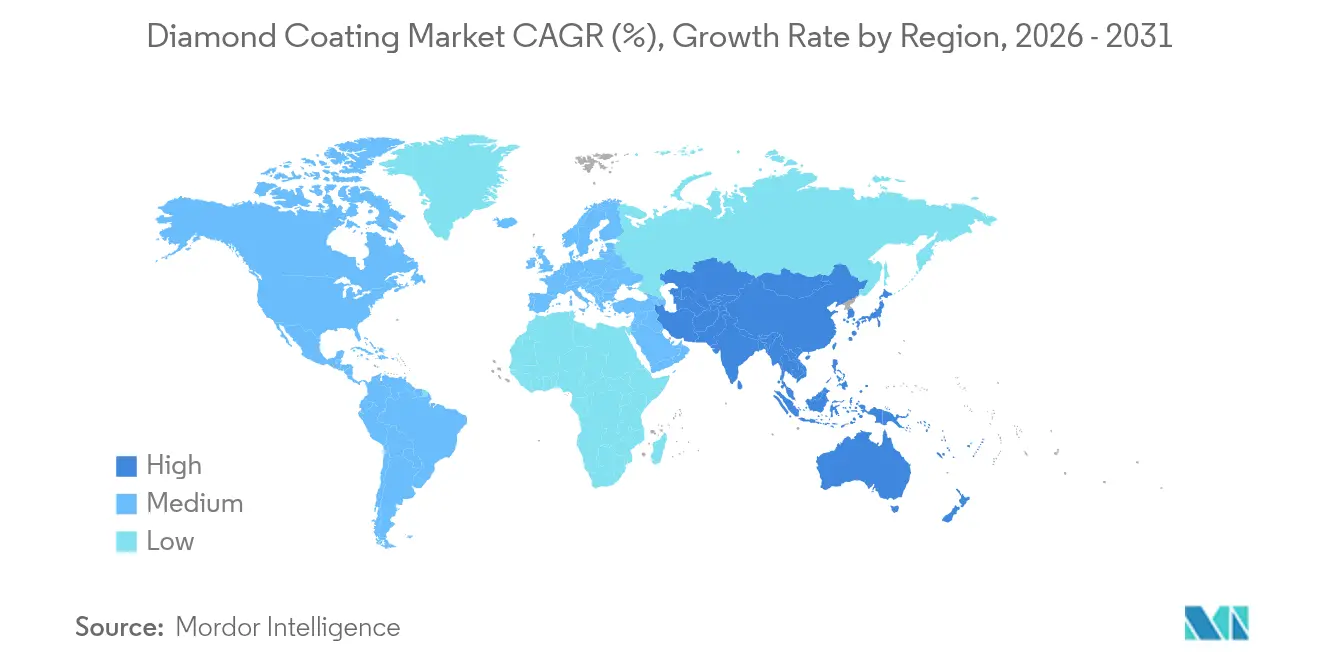

Asia-Pacific controlled 56.10% of global revenue in 2025 and is pacing the field with a 6.79% CAGR through 2031. China leverages long-running “863” funding lines to integrate lab-grown diamond supply with CVD reactor manufacturing, giving local players cost advantages along the diamond coating value chain. Japan’s Orbray has scaled 2-inch single-crystal diamond wafers and targets 4-inch substrates by 2027, laying groundwork for wide-bandgap semiconductors and quantum photonics. South Korea’s EV battery boom creates a parallel surge in diamond-clad welding electrodes for tab joining.

North America follows as a mature adopter, with Sandia National Laboratories unveiling stress-free amorphous diamond films thick enough for large-area coverage without cracking. CHIPS Act grants worth more than USD 80 million have already flowed to Coherent and Akash Systems to accelerate on-shore diamond material technologies. Canada’s aerospace machining cluster and Mexico’s automotive assembly lines also specify diamond tooling to maintain tolerances on composite parts.

Europe’s market reflects an interplay of strict environmental regulations and precision engineering heritage. Germany’s OEMs rely on diamond routers to machine carbon-fiber body panels, while France’s Safran and Oerlikon together invested over USD 8 million in a joint surface-treatment lab focused on turbine efficiency. The United Kingdom has dedicated USD 5.2 million via UKRI to an Element Six–University of Warwick program developing synthetic diamond heat spreaders for space electronics. Compliance with REACH continues to steer European firms toward durable, recyclable tooling options.

South America and the Middle-East and Africa are smaller today but show rising inquiry volumes from mining, oil-field, and precision agricultural equipment producers seeking longer component life in abrasive conditions. As regional industrialisation gains pace, the diamond coating market will likely see distributor networks and toll-coating capacity expand into Brazil, Saudi Arabia, and the United Arab Emirates.

Regulatory Landscape

Regulation for diamond and diamond-like carbon (DLC) coatings is tightening around chemicals management, nanomaterial documentation, and application-specific safety. In the European Union, REACH requirements for nanoforms are a key anchor for suppliers of nanodiamond particles and nano-abrasive formulations, with ECHA-linked updates cited for 2026 that emphasize nano-specific registration and expanded safety documentation (including Nano-SDS and labeling) for EU-bound shipments. These obligations increase compliance and traceability requirements for non-EU producers exporting to Europe, and they also shape how coating formulators define particle size distributions and labeling during procurement.

Application-driven standards and approvals also influence market access. For instance, food-contact use is governed through US FDA pathways such as Food Contact Notifications (FCNs), where DLC coatings can be cleared for defined uses by individual notifiers, including an FCN held by Balzers Aktiengesellschaft. In Asia, formalized performance specifications for DLC coatings are emerging through national standards such as KS D 8353-2026 in South Korea and technical specifications such as T/CSAE 103-2019 in China, which pushes buyers toward more standardized testing for hardness, friction, and wear. Environmental permitting affects upstream synthetic diamond and coating operations as well, including UK Environment Agency permitting expectations for facilities running microwave plasma CVD processes with methane and hydrogen gas handling.

Value Chain Analysis

The diamond coating value chain starts with feedstocks and deposition equipment, including high-purity process gases such as hydrogen and methane for CVD and, where used, dopant precursors such as silicon-containing chemistries. Reactor platforms and critical components, including vacuum systems, plasma or hot-filament assemblies, gas handling, and abatement, support coating service capacity. Substrates span cemented carbides, steels, ceramics, and electronics-related materials, which often require tightly controlled pretreatment and seeding before deposition.

In the midstream, specialist coaters and integrated tooling players run pretreatment, nucleation, deposition (CVD and PVD variants), and post-process inspection to manage film stress and adhesion, which remains a central bottleneck, especially on carbide substrates where cobalt diffusion and thermal mismatch can weaken bonding. Companies such as Element Six and sp3 Diamond Technologies supply diamond materials and coating services, while industry groups such as the Industrial Diamond Association of Japan support downstream adoption. Downstream channels include direct OEM and tier-supplier qualification in cutting tools, electronics thermal management components, and medical instruments, where qualification cycles and performance verification drive repeat orders and reward suppliers with stable process control and documentation for regulated end uses.

Market Opportunities and Future Outlook

Thermal management for advanced electronics is creating a more visible opportunity set for diamond coatings and diamond-based films as design-in materials. In 2026, Fraunhofer IST reported a reflection mapping method intended to improve large-area diamond coating uniformity and measurement on 300 mm silicon wafers, tackling a practical barrier to scaling diamond-coated semiconductor substrates. Alongside this, semiconductor packaging R&D continues to explore diamond-based films for die-stack heat spreading and electrical connectivity, including Intel patent filings in 2026 that describe diamond-related film concepts for thermal dissipation in stacked architectures.

Process and materials opportunities also center on lowering deposition temperatures and expanding compatible substrates, particularly for temperature-sensitive electronics assemblies and medical components where adhesion and thermal stress constraints can narrow conventional DLC/CVD windows. Evidence in the current landscape points to work on lower-temperature deposition approaches, including hot-filament or remote plasma techniques referenced in patent disclosures, and to interlayer engineering such as carbide-forming layers like TiC, VC, or CrC to improve wetting and adhesion in diamond/metal composite systems. These pathways align with existing demand anchors in the broader market landscape, including metallized diamond heat spreaders for AI hardware and durability-driven DLC use in sterilizable medical instruments, while also supporting more repeatable manufacturing through improved metrology and scrap reduction.
