Rising Demand for Mini- and Micro-LED Back-lighting in High-Resolution Displays

Premium television, notebook, and automotive OEMs moved from edge-lit to mini-LED architectures during 2025, multiplying the number of die-level emitters per panel and pushing sapphire-wafer pullers to run longer campaigns. Commercial micro-LED pilots now target sub-100 µm die sizes grown on 6-inch c-plane sapphire, eliminating color filters and thick encapsulants for thinner displays with higher contrast. Osaka University demonstrated europium-doped GaN red LEDs on sapphire that approach 10% external quantum efficiency, allowing monolithic full-color stacks without die-transfer steps. Orbray responded with high-flatness 6-inch substrates that show total-thickness variation below 10 µm, accelerating adoption at Tokushima and Yamaguchi fabs.^{[1]Orbray, “Sapphire Single-Crystal Substrate Specifications,” orbray.com} Electric-vehicle cockpits, which house multiple high-resolution displays, add an auto-grade reliability requirement that further anchors domestic sapphire demand.

Government Incentives for Domestic LED Supply-Chain Localization

Tokyo earmarked roughly USD 870 million in 2024 for compound-semiconductor R&D hubs, with dedicated lines for wide-band-gap devices grown on sapphire.^{[2]Ministry of Economy, Trade and Industry, “Semiconductor and Compound Semiconductor R&D Support Programs,” meti.go.jp} Subsidies lower crystal-growth furnace payback from seven to about four years for small epitaxial houses, while workforce programs rebuild a talent pool hollowed out during the 2010s offshoring wave. Security concerns heightened urgency when China briefly restricted gallium and germanium exports in 2023; policymakers now target 30% local sapphire-wafer self-sufficiency by 2030, implying annual furnace installations 15-20% above historical norms.

Mainstream Adoption of 6-Inch Wafer Lines by Japanese LED IDMs

Japan’s top LED makers finished a two-year shift from 4-inch to 6-inch sapphire in 2025. The larger format delivers 2.25× usable area, helping blunt an 8-12% annual ASP slide in commodity lighting chips. Orbray scaled edge-defined film-fed growth (EFG) to meet 6-inch demand, supplying 1.3 mm-thick wafers with sub-15 µm total-thickness variation. Furnace vendors captured the resulting replacement cycle; Kyropoulos tools built for 4-inch boules could not meet thermal-field specs for 6-inch, prompting wholesale upgrades and pushing the Japan sapphire crystal growth equipment market for LED substrates toward fresh capital outlays despite flat end-market units.

Labor shortages intensified as veteran furnace operators retired in greater numbers than new graduates entered crystal engineering. Linton Crystal Technologies inserted AI-driven facet detection into Czochralski pullers in 2024, trimming scrap by 3-5 points and slashing manual interventions by roughly half.^{[3]Linton Crystal Technologies, “AI-Based Facet Detection for Czochralski Growth,” lintoncrystal.com} PVA TePla partnered with Sentech in 2025 to mount optical metrology heads inside growth chambers, giving real-time stress maps without pausing the run.^{[4]PVA TePla AG, “H1 2025 Financial Results,” pvatepla.com} Reinforcement-learning loops now tune heater power to match diameter set-points within ±0.5 mm, a critical enabler for 8-inch sapphire where thermal budgets are unforgiving.

Capital-Intensive Furnace Procurement Cycle for SME Epi-Houses

Premium Kyropoulos and Czochralski tools carry list prices ranging from USD 300,000 to USD 1.5 million, and custom large-boule systems exceed USD 2 million, placing them out of reach for many domestic specialty producers. Each furnace needs 10-20 days per pull, capping annual output near 18 runs and stretching payback horizons beyond five years unless utilization stays above 85%.^{[5]XKH Semitech, “Kyropoulos Furnace Capacity and Specifications,” xkhsemitech.com} Japan lacks a mature leasing market for sapphire equipment, so smaller firms must either self-fund or rely on high-interest project loans, both of which constrain working capital. Some plants respond by outsourcing wafers to low-cost Chinese suppliers, sacrificing lead-time control and custom orientation options. This restraint directly slows the refresh cycle for modern, automation-ready furnaces that could lift yields and cut power use.

Volatility in LED End-Market Demand Post-2025 Lighting Retrofit Peak

General-lighting replacements peaked in 2025, and unit volumes have since flattened, pushing average selling prices down 8-12% per year for commodity blue chips. Export-heavy Japanese IDMs now face shorter visibility on purchase orders, making them cautious about locking capital into additional sapphire capacity. The temporary oversupply created during the 2024 build-ahead phase triggered a destocking wave that idled several Kyropoulos lines for multiple months. At the same time, emerging micro-LED and automotive segments are still in pilot production, generating insufficient wafer pull to offset lost lighting volumes. The gap between waning retrofit demand and future display ramps leaves furnace vendors navigating a two-to-three-year booking vacuum.

Segment Analysis

By Equipment Type: Automation Modules Redefine Value Creation

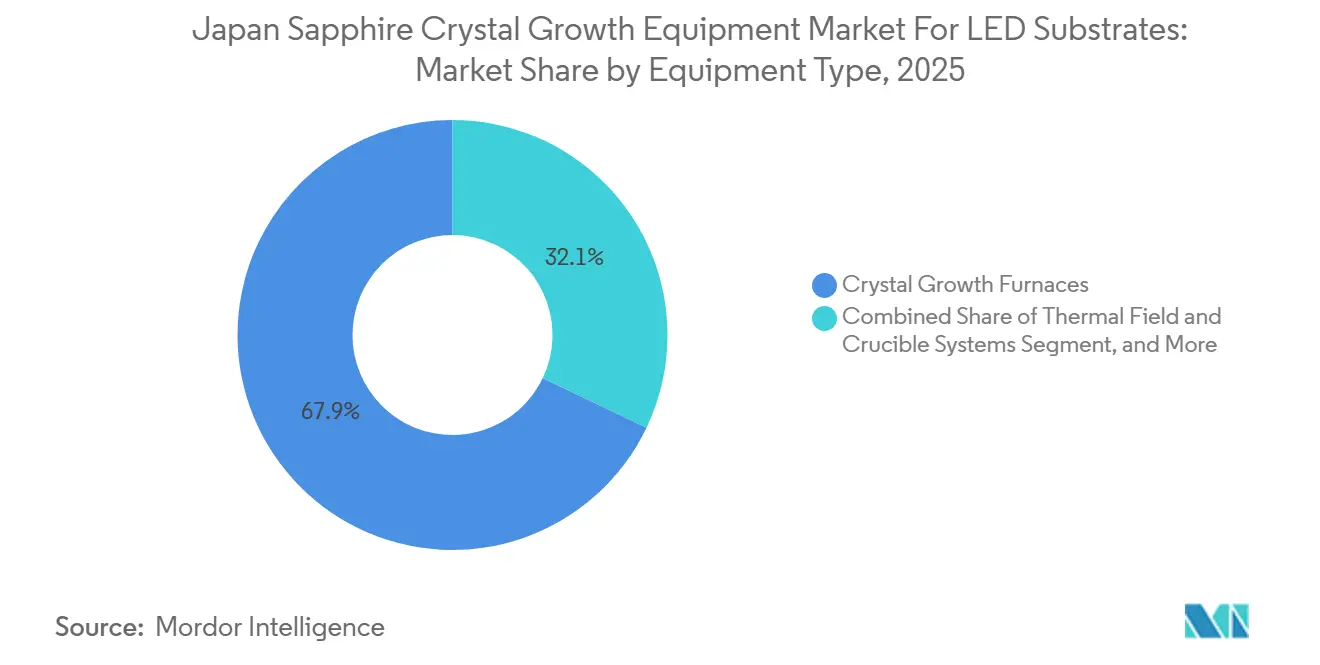

Crystal growth furnaces commanded 67.91% of the Japan sapphire crystal growth equipment market for LED substrates industry market share in 2025, underscoring their position as the largest single capital item. Thermal-field and crucible kits form the next cost block, with molybdenum replacements priced near USD 500 per piece and iridium containers fetching premium quotes on 99.99% purity needs.^{[6]Furuya Metal, “Iridium Crucibles for Sapphire Crystal Growth,” furuyametals.co.jp} Growth-automation and process-control systems, while starting from a smaller base, are projected at a 6.17% CAGR because AI vision and in-chamber metrology cut scrap and operator minutes. Large integrated device manufacturers buy turnkey furnace-plus-automation bundles to raise throughput per clean-room square meter, whereas small specialty houses often continue with manual pullers to contain cash burn.

Competitive dynamics vary by buyer profile. Western vendors dominate high-end projects that demand tight diameter tolerances, while cost-focused Chinese suppliers court peripheral prefectures with 30-40% lower ticket prices. As labor shortages deepen, automation spending should capture an incrementally larger slice of the Japan sapphire crystal growth equipment market for LED substrates industry market size, even if the absolute number of new furnaces rises only modestly. Over the forecast horizon, software and sensor upgrades are expected to deliver more incremental value than hardware wattage alone, reshaping vendor qualification criteria.

Note: Segment shares of all individual segments available upon report purchase

By Growth Technology: Czochralski Pullers Close the Gap

The Kyropoulos method held 58.73% of the Japan sapphire crystal growth equipment market for LED substrates industry market share in 2025 because its slow-cool profile yields low threading dislocation densities that boost LED external quantum efficiency. It remains the default for 6-inch production due to proven yield curves and well-understood thermal models. Czochralski pullers, however, are poised for a 6.24% CAGR as AI diameter control and cleaner iridium crucibles achieve ±0.5 mm uniformity on 8-inch boules. Hybrid frames that toggle between the two modes are emerging, letting fabs hedge format risks without duplicating capital.

Edge-defined film-fed growth continues to serve optical parts producers that need net-shape ribbons, while heat-exchanger systems win orders where void-free optics justify longer growth times. The growing mix shift toward Czochralski should lift demand for real-time melt monitoring and higher-power induction heaters, widening the accessory revenue pool. As display and flash-LED markets swing to larger wafers, Kyropoulos is expected to hold baseline volumes, but software-rich Czochralski lines will capture most incremental additions to the Japan sapphire crystal growth equipment market for LED substrates industry market size.

By Sapphire Diameter Capability: Above-300 mm Tools Lead Expansion Curve

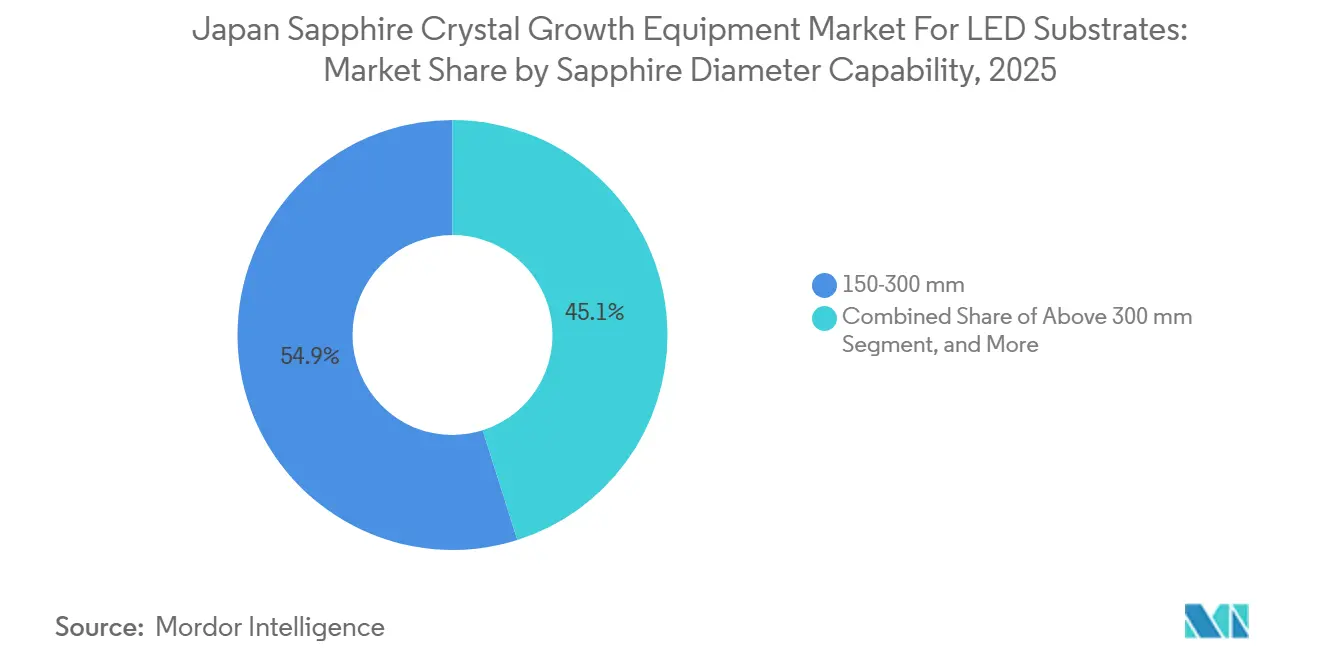

Equipment rated for 150-300 mm boules delivered 54.88% of the Japan sapphire crystal growth equipment market for LED substrates industry market size in 2025, reflecting the recently completed transition to 6-inch processing across many domestic LED fabs. Orbray’s epi-ready wafers, featuring sub-0.3 nm surface roughness and less than 15 µm total-thickness variation, set the reference standard in this diameter band and continue to anchor mid-scale demand. These tools offer a balanced trade-off between material yield and manageable thermal-gradient control, ensuring consistent puller utilization in commodity and specialty lighting.

Above-300 mm platforms are forecast to expand at a 6.31% CAGR through 2031 as micro-LED and smartphone flash-LED developers migrate to 8-inch wafers that yield roughly 2.8× more dies than a 6-inch. The larger format magnifies stress management challenges, so suppliers embed reinforcement-learning loops that modulate heater power in real time and minimize boule cracking. Up-to-150 mm systems now cater mainly to R&D and deep-ultraviolet niches and are expected to trend flat as the industry consolidates around larger substrates. Consequently, next-generation puller orders will skew toward high-power, tightly insulated chambers, positioning >300 mm capacity as the primary growth engine for the Japan sapphire crystal growth equipment market for LED substrates industry market share over the forecast horizon.

Note: Segment shares of all individual segments available upon report purchase

Geography Analysis

Kyushu commands the largest Japan sapphire crystal growth equipment market for LED substrates industry market share because its long-standing semiconductor parks host most of the nation’s installed Kyropoulos and Czochralski lines. The cluster benefits from shared high-purity gas networks, proximity to power-device fabs and a pool of furnace technicians trained since the early 2000s. Prefectural grants further reduce the effective purchase price of automation modules, encouraging fast adoption of AI vision tools. As a result, Kyushu fabs post higher furnace-utilization ratios than peers in other regions, sustaining steady demand for crucible replacements and control-software upgrades. Local governments now market the area as a one-stop ecosystem for sapphire substrates, reinforcing its pull on new investments.

Tohoku is the fastest-growing regional node, supported by Ministry of Economy, Trade and Industry subsidies that cover a portion of crystal-growth tool costs. Newly built R&D hubs in Miyagi and Fukushima offer shared pilot lines where equipment makers demonstrate automation features under real production loads. These trial programs shorten qualification cycles for next-generation pullers and attract mid-sized epitaxial houses looking to expand beyond 6-inch wafers. The Japan sapphire crystal growth equipment market size in Tohoku is therefore expected to rise more quickly than the national average through 2031, even though its absolute base remains smaller than Kyushu’s.

Tokushima and Yamaguchi retain strategic weight because they host vertically integrated LED leaders that grow sapphire, run epitaxy and perform final device packaging on contiguous campuses. Their plants were early movers to 6-inch wafers and now pilot 8-inch boules, creating an ongoing replacement cycle for above-300 mm furnace frames. In contrast, Shikoku and selected Chugoku prefectures contain several small specialty epi-houses that delay tool upgrades until capital grants become available, limiting short-term order flow. Nationwide, high electricity tariffs continue to shape site-selection logic, pushing new pullers toward regions with stable grid prices and preferential rate programs, yet overall geographic dispersion remains tight around the three core clusters.
