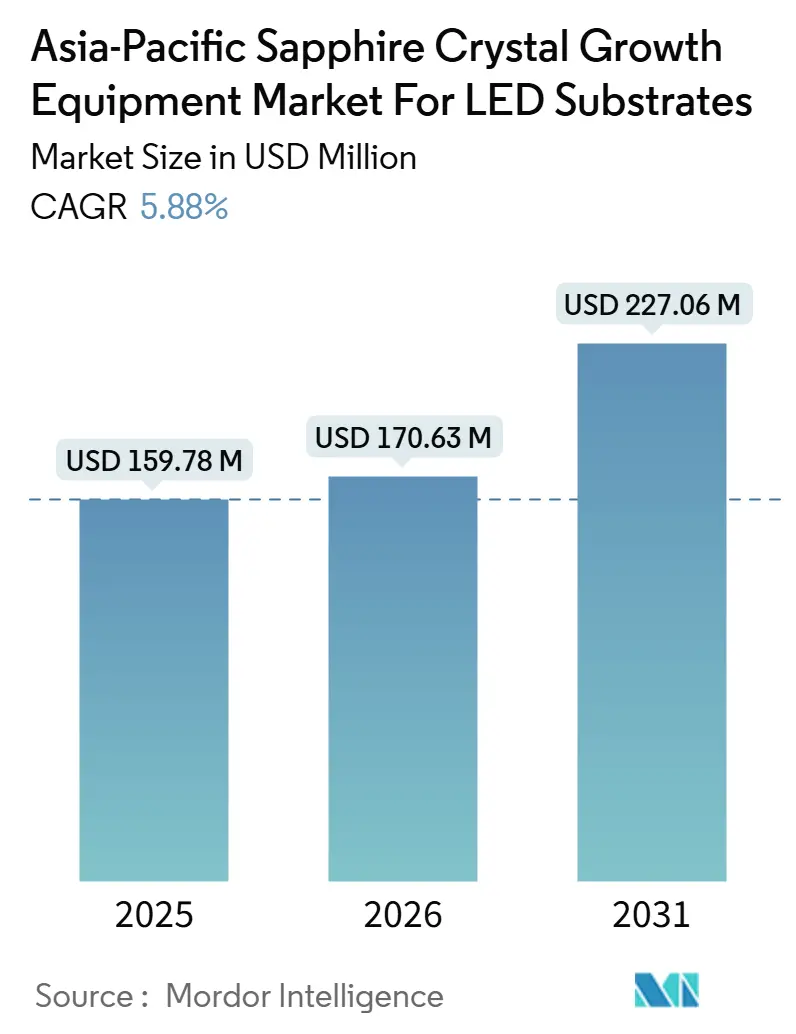

Insights and Trends of Asia-Pacific Sapphire Crystal Growth Equipment Market For LED Substrates

Rapid Expansion of Mini-LED Backlighting Capacity in Mainland China

China shipped more than 8 million mini-LED televisions in 2025 and is on track to surpass 10 million units in 2026, roughly one-third of the domestic TV market and more than 70% of global mini-LED TV volumes.^{[1]“2025 年中国 Mini LED 电视超 800 万台,” Sina Finance, sina.com.cn} Each 75-inch mini-LED panel integrates thousands of dies, lifting sapphire substrate demand and pulling furnace purchases forward. HKC’s Liuyang campus, financed at CNY 9 billion (USD 1.24 billion) and designed for more than 500 million mini-LED backlight modules per year, exemplifies the scale driving Kyropoulos and automation orde. Panel majors BOE and CSOT optimized Gen10.5 lines and absorbed LG Display’s Guangzhou Gen8.5 fab to secure over 50 million annual LCD TV panel shipments, reinforcing China’s upstream pull on equipment. RGB mini-LED architectures debuted at CES 2026 demand tighter die placement, which in turn requires higher substrate uniformity, spurring orders for closed-loop process-control options on new furnaces.

Ongoing Migration to 8-Inch Sapphire Wafers in Display LED Supply Chains

Display LED makers are transitioning from 6-inch to 8-inch (200 mm) sapphire to pare cost per die and boost fab throughput. RWTH Aachen and AIXTRON demonstrated nitrogen-polar III-nitride heterostructures on 200 mm sapphire using a 5 × 200 mm Planetary MOCVD reactor in 2025, proving large-wafer epitaxy viability.^{[2]Mike Cooke, “Nitrogen-polar III-N HFETs on 200 mm Sapphire Substrates,” Semiconductor Today, semiconductor-today.com} Larger diameters demand crucibles over 400 mm and precise thermal-field control, driving upgrades that bundle high-resolution vision systems and motorized shield lifts Peking University showed reusable r-plane sapphire that survives three epitaxy-and-exfoliation cycles, hinting at future reductions in net wafer consumption and supporting furnace payback models. However, dislocation density and radial stress rise sharply beyond 300 mm, so fabs often adopt advanced automation to keep yields acceptable.

Government Subsidies for Domestic LED Equipment Vendors in China and Taiwan

Beijing’s Big Fund III earmarked an estimated USD 50 billion in 2025 to close domestic equipment gaps exposed by U.S. export controls. Although logic and memory are headline beneficiaries, sapphire toolmakers qualify through upstream-materials clauses. In Taiwan, the Ministry of Economic Affairs launched a NTD 93 billion (USD 2.9 billion) package in August 2025 that increases export-loan guarantees and offsets capital costs for indigenous tool adoption. Procurement conditions favor “big-lead-small” consortia, aligning local startups with established fabs. Japan’s Economic Security Promotion Act layers similar incentives but ties subsidies to a JPY 30 billion (USD 0.19 billion) investment threshold, nudging foreign vendors toward Japanese joint ventures.^{[3]Eva Chen, “Japan's Semiconductor Equipment Industry Policies and Guidelines,” Invest Taiwan, investtaiwan.nat.gov.tw}

Increasing Adoption of Micro-LED in Wearables and AR Devices

Micro-LED technology is moving from prototypes into high-end wearables and augmented-reality glasses, lured by high luminance and long lifetime relative to OLED. HKC unveiled a 6.67-inch micro-LED prototype in December 2024 rated at 1,000 nits and now runs a dedicated factory in Mianyang that targets commercial ramp in 2026. AR glasses demand luminance above 10,000 nits, which elevates substrate quality requirements; defects that are tolerable in television LEDs create pixel kill in near-eye optics. Laser-assisted mass-transfer trials reached 99.5% die-transfer yields on 2-inch wafers with ±0.3 µm placement accuracy, underscoring the tight tolerances now expected from sapphire wafers. Patterned sapphire substrates have improved light extraction by more than 30%, anchoring process-tool demand for hybrid etch and growth workflows.

High Capital Intensity and Long Payback Period for Kyropoulos Furnaces

A modern Kyropoulos furnace capable of 800-1,000 kg boules typically costs more than USD 1 million installed, well above entry-level Czochralski tools. Financing challenges are most acute in Southeast Asia, where state-backed credit lines are limited and private lenders demand higher collateral. LED chip pricing swings worsen the equation; a 10% spot-price hike on back of copper and silver inflation in early 2026 failed to offset volume softness, stretching projected paybacks beyond 36 months. Thermal-stress modeling shows the highest von Mises stress during natural cooldown, which compels additional heater-zone controls that add cost.^{[4]S. Wang and H. Fang, “Dependence of Thermal Stress Evolution on Power Allocation during Kyropoulos Sapphire Cooling Process,” Applied Thermal Engineering, scipubonline.com} Smaller capacity CZ or Edge-Defined systems remain fallback options for greenfield fabs despite lower optical quality.

Technical Challenges in Scaling Above 300 mm Sapphire Boules

Boules wider than 300 mm face higher dislocation density and radial thermal gradients that cut wafer yields unless seeding and cooldown are tightly controlled.^{[5]Jia Xu et al., “Optimization of the Quality Control Parameters in Sapphire Single Crystal Preparation,” CrystEngComm, rsc.org} Taiyuan University used neural-network optimization to keep melt-gap variations within 0.5 mm, yet large-scale automation is not universally deployed. Korea Institute of Industrial Technology’s vision-based system reduces average seeding error to 1.87 mm but still needs operator oversight. Edge defects become prominent when smaller PSS tiles are etched into large wafers, raising scrap risk. Linton Crystal’s 600 mm CZ grower highlights mechanical feasibility, yet sapphire users remain cautious because stress and birefringence escalate with diameter.

Segment Analysis

By Equipment Type: Automation Fuels Incremental Growth

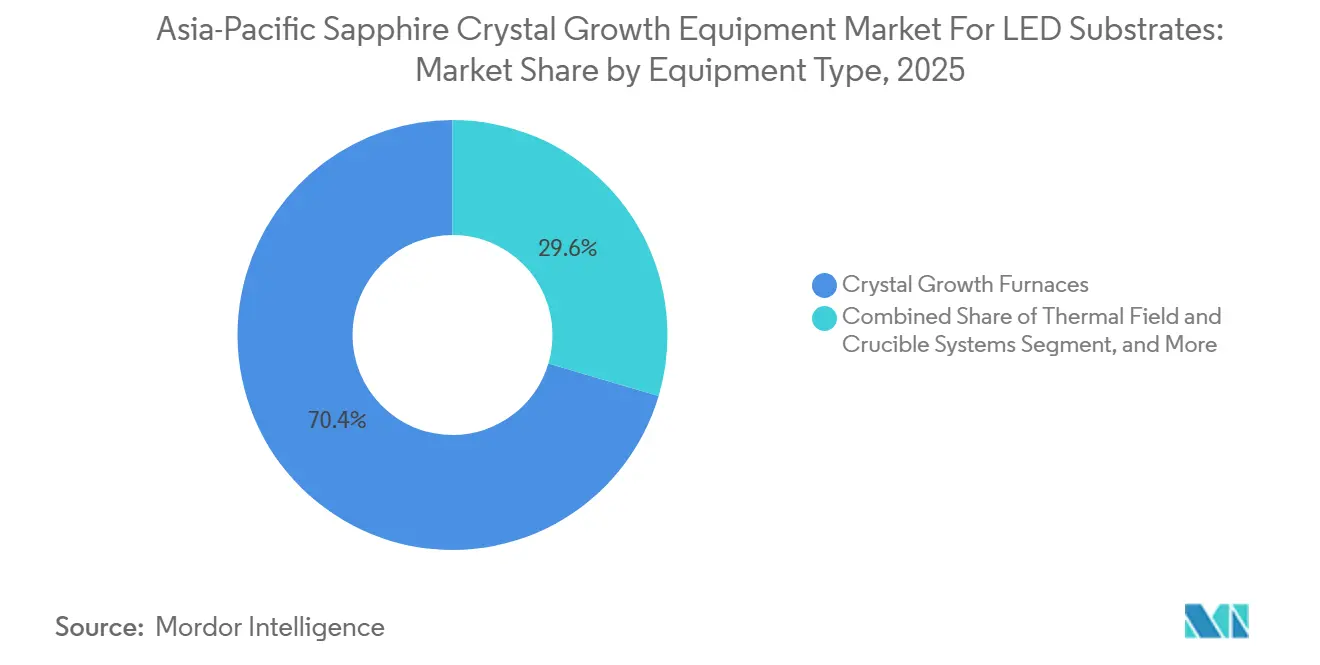

Crystal growth furnaces generated the majority of Asia-Pacific sapphire crystal growth equipment market for LED substrates industry revenue at 70.42% in 2025. Growth automation and process-control add-ons, while a smaller base, are projected to grow 6.17% annually through 2031, outpacing the overall Asia-Pacific sapphire crystal growth equipment market for LED substrates CAGR. Furnaces remain cornerstone assets because they determine boule diameter, optical quality, and throughput. However, operator-dependent seeding still introduces yield loss; fabs therefore allocate new-tool budgets toward software and vision upgrades that stabilize melt convection.

Automation vendors integrate high-resolution cameras, laser rangefinders, and predictive analytics that track melt-gap in real time and adjust shield-lift speed automatically. These upgrades cut cycle-to-cycle variability and help fabs meet micro-LED substrate specifications. Thermal-field and crucible sub-systems face margin squeeze because quartz-crucible prices eased in 2024, but they still anchor aftermarket revenue streams. Suppliers market longer-life insulation and consumables to lock in annuity sales, keeping the Asia-Pacific sapphire crystal growth equipment market for LED substrates industry ecosystem balanced.

Note: Segment shares of all individual segments available upon report purchase

By Growth Technology: Kyropoulos Quality Versus Czochralski Speed

The Kyropoulos method accounted for 58.96% of Asia-Pacific sapphire crystal growth equipment market for LED substrates industry revenue in 2025, thanks to low birefringence and uniform optical quality. Czochralski tools are forecast to deliver a 6.58% CAGR through 2031, driven by shorter pull times and tighter diameter control on 200 mm wafers. Edge-Defined Film-Fed Growth and Heat Exchanger Method occupy niche optics and sensor applications where geometry or homogeneity overrides defect density.

Kyropoulos cycles can exceed 18 days for 100 kg boules, elevating energy use and depreciation charges. Continuous improvements in heater-zoning and seed-lift algorithms mitigate but do not erase this drawback. Czochralski adopters leverage computational fluid-dynamics models to narrow the dislocation gap; recent pilot runs report near-Kyropoulos quality when seeds, rotation speed, and melt temperature are optimized. As panel makers shift to 8-inch and above, the Asia-Pacific sapphire crystal growth equipment market for LED substrates industry market size for Czochralski tools could scale quickly, provided suppliers resolve stress-induced cracking on cooldown.

By Sapphire Diameter Capability: Large-Wafer Economics Take Center Stage

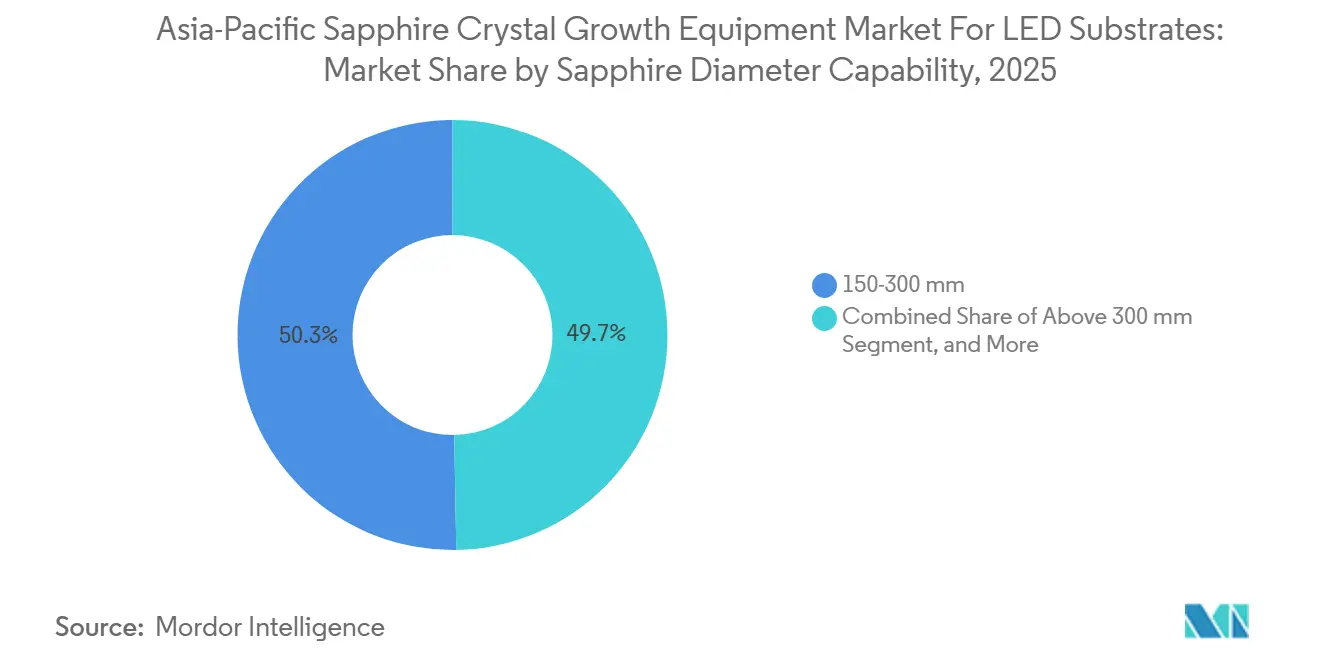

Tools rated for 150-300 mm boules captured 50.28% of 2025 revenue, reflecting the installed base of 6-inch and 8-inch production lines. Equipment supporting above-300 mm boules is projected to log a 6.72% CAGR, the highest among diameter classes, as panel makers chase cost-per-die savings on mini-LED and future micro-LED backlights. Although above-300 mm Kyropoulos furnaces offer volume leverage, yields deteriorate without superior automation, so many fabs pilot large-diameter CZ lines first.

RWTH Aachen’s 200 mm nitrogen-polar demo validated large-wafer epitaxy on sapphire, catalyzing tool RFQs for 400 mm crucibles. ECM Greentech furnaces now quote optional high-pressure operation and robotic loading that lower operator exposure to high-temperature zones. Yet radial thermal gradients and dislocation density climb at 300 mm-plus sizes, so repeatable yields hinge on predictive software, another driver that blends this segment with the automation growth narrative.

Note: Segment shares of all individual segments available upon report purchase

Geography Analysis

China represented 58.37% of Asia-Pacific sapphire crystal growth equipment market for LED substrates revenue in 2025. Mini-LED television shipments above 8 million units, Big Fund III’s USD 50 billion war chest, and mandates on state-owned adopters anchor near-term tool demand. Domestic suppliers such as NAURA Technology Group and Zhejiang Jingsheng secure orders through preferential financing and localized service, insulating them from certain U.S. export restrictions. HKC’s Liuyang project and the television roadmaps of BOE and CSOT maintain furnace utilization above 85% and prioritize Kyropoulos orders.

Taiwan blends subsidy levers with international partnerships. The NTD 93 billion (USD 2.9 billion) program that began in 2025 boosts export-loan guarantees and reimburses domestic tool purchases, encouraging foundry-equipment startups to collaborate with established panel brands. Taichung’s full LED-streetlight conversion reduces municipal electricity usage by 80 million kWh yearly and illustrates downstream pull for efficient LED substrates. Japan counters with the Economic Security Promotion Act, tying subsidies to JPY 30 billion (USD 0.19 billion) investment thresholds and channeling JPY 1.23 trillion (USD 7.9 billion) toward cutting-edge semiconductor tooling for fiscal 2026.

Rest of Asia-Pacific, including Korea, Southeast Asia, and India, is forecast to post a 6.23% CAGR through 2031, outpacing the overall Asia-Pacific sapphire crystal growth equipment market for LED substrates. Korea leverages its strong semiconductor ecosystem and proximity to display panel makers to attract spillover equipment investment when China faces tightening export controls. Southeast Asian governments court diversified supply chains as a hedge against geopolitical shocks, offering tax holidays and land grants. India’s Production-Linked Incentive scheme for semiconductors may widen to include sapphire upstream if pilot micro-LED programs mature after 2027.
