China LED Epitaxy MOCVD Equipment Market Size & Share Analysis - Growth Trends and Forecast (2026 - 2031)

China LED Epitaxy MOCVD Equipment Market Trends and Insights

Rising Demand for High Brightness GaN Based LEDs in Automotive Lighting

Automakers are shifting from halogen or HID lamps to adaptive GaN arrays that deliver up to 200 lumens per watt, cutting power draw and boosting electric-vehicle range. Sanan Optoelectronics’ 2025 purchase of Lumileds secured a sizeable patent library and automotive-qualified GaN recipes, positioning local tier-one suppliers to capture higher value modules. New headlamp rules issued by MIIT mandate glare-free high beam patterns, effectively locking in pixel-addressable GaN as the compliant technology.^{[1]Ministry of Industry and Information Technology, “GB 25991-2020 Headlamp Photometric Requirements,” miit.gov.cn} Higher raw material costs since 2025 further favor these efficient dies, because fewer chips now achieve the required brightness. Collectively, these forces lift equipment demand as headlamp makers convert entire production lines to high-power GaN.

Subsidy Reforms Accelerating Domestic MOCVD Adoption

A December 2025 directive links state subsidies to a 50% domestic tool quota, forcing fabs that rely on public funding to qualify Chinese reactors or lose access to RMB 81 billion (USD 11.4 billion) in aid. Advanced Micro-Fabrication Equipment Inc. China responded by shipping production batches of its newest six and eight-wafer tools with over 80% local content, easing licensing risk under United States export controls.^{[2]U.S. Department of Commerce, “Export Controls for Compound Semiconductor Equipment,” commerce.gov} Early adopters report wavelength uniformity under 2% across 50 wafer runs, a level once attainable only on premium imports, supporting accelerated switch overs.

Capacity Expansion of Chinese IDM LED Manufacturers Post-2026

Integrated device makers are scaling aggressively to lock in margin across epitaxy, fabrication, and packaging. Sanan’s Hubei campus is slated to house 4,995 front end tools by 2027, including 120 reactors dedicated to red green blue micro displays. HC Semitek’s in-house wafers cut external procurement costs by 18%, enabling the firm to post 13.44% revenue growth in the first half of 2025. Vertical ownership allows real time recipe tuning that has already lifted die yield from 85% to 92%, underpinning a fresh purchasing cycle for mid decade lines.

Localization Initiatives for Semiconductor Equipment Supply Chains

Self-sufficiency targets call for 70% domestic tool coverage by 2027, up from 35% in 2025. Financing from the third phase of the National Integrated Circuit Industry Fund directs RMB 344 billion (USD 48.5 billion) toward front-end equipment, with epitaxy classed as a priority technology. AMEC and NAURA now source manifolds, quartzware, and vacuum sub-components from local vendors, cutting export exposure and shaving up to 20 weeks off lead times. Domestic chemical suppliers are also scaling trimethylgallium output to 50 metric tons per year, protecting fabs from international gallium price spikes.

Slowdown In General Lighting LED Demand Saturation

Urban households surpassed 75% LED penetration by 2024, elongating replacement cycles from three to roughly seven years. Combined with slower real estate starts, this dynamic reduced commodity GaN wafer pricing by 8 % in 2025 and cut merchant utilization into the high seventies.^{[3]U.S. Department of Energy, “LED Manufacturing Cost Analysis 2025,” energy.gov} Suppliers are reallocating capital toward automotive, horticultural, and UVC segments, but the transition period weighs on near term orders for legacy 150 millimeter tools.

High Capital Intensity and Long Payback Periods for New Reactors

A 50-reactor line carries a USD 150-250 million price tag once cleanrooms and gas delivery are included, stretching payback beyond five years unless subsidy offsets apply. The mandatory domestic-tool quota softens equipment discounts but can lengthen ramp schedules, as new reactors often require more than one year of process tuning before matching imported yields. Smaller foundries, therefore, face balance sheet strain, which may slow tool adoption until wafer pricing for premium applications firmly outpaces depreciation.

Segment Analysis

By LED Material System: GaN Leads While UV Gains Momentum

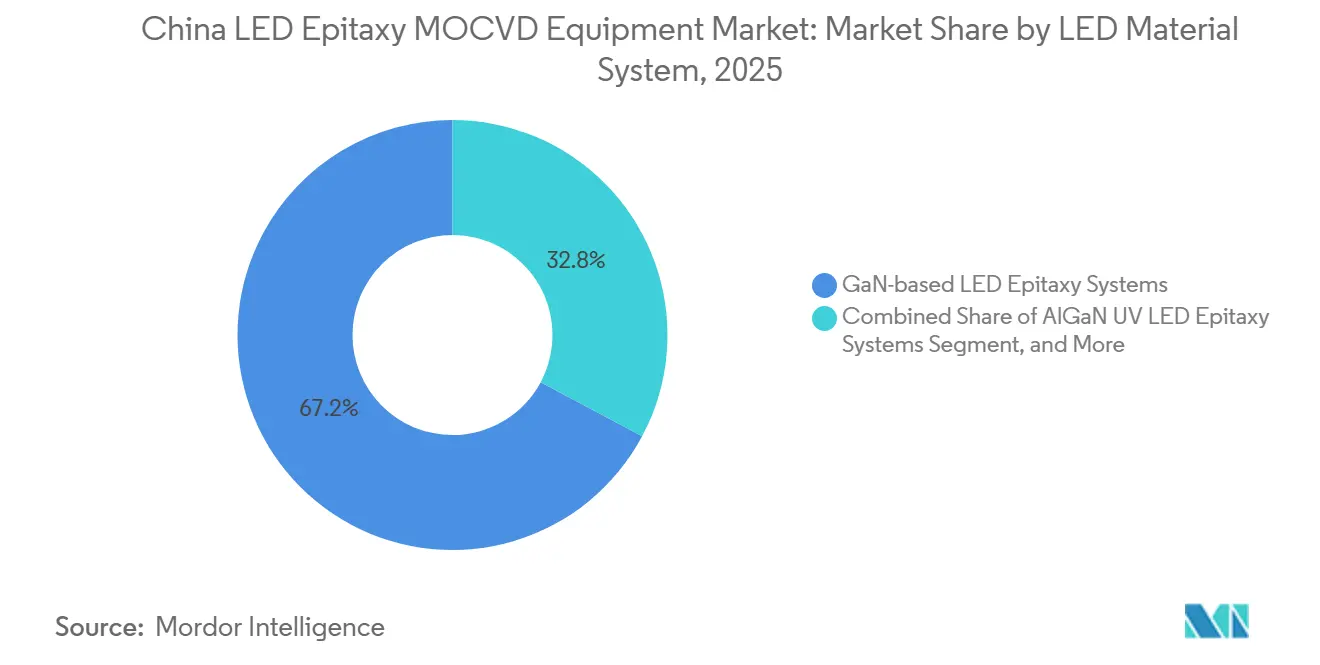

GaN platforms accounted for 67.19% of the China LED epitaxy MOCVD equipment market share in 2025, driven by their use in automotive headlamps, horticultural lamps, and pilot micro display lines. AlGaN ultraviolet tools are expected to grow at a 14.53% CAGR as municipal water and healthcare operators prefer mercury-free 265-275 nanometer emitters that meet disinfection standards without chemical byproducts. This growth is supported by advancements in aluminum nitride wafers, which enable higher current density compared to sapphire, reducing die counts per lamp and lowering fixture costs.

GaN producers are addressing flat general lighting demand by redirecting surplus capacity into high-brightness automotive arrays and early micro display qualification runs. These applications require tight binning but offer price premiums, ensuring healthy overall utilization. Sustained UV momentum relies on substrate breakthroughs, with aluminum nitride wafers playing a critical role in enhancing performance and cost efficiency.

Note: Segment shares of all individual segments available upon report purchase

By Wafer Size Capability: 200 mm Shift Drives Economies Of Scale

Legacy 150 millimeter reactors accounted for 45.24% of the China LED epitaxy MOCVD equipment market size in 2025. The demand for 200 millimeter and larger systems is expected to grow at a rate of 14.14% through 2031. This growth is driven by fabs achieving 35-40% per die cost savings through higher throughput and improved substrate utilization.

A surge of joint development projects, such as the 200 millimeter GaN on silicon program between ALLOS and Ennostar, underlines the migration. Reactor OEMs are enlarging platen diameters while refining gas flow to hold sub-2% wavelength variation across larger wafers, prerequisites for premium micro displays. Tool makers that master these parameters early will capture next wave orders once crystal growers clear current lead time bottlenecks.

By Reactor Configuration: Showerhead Adoption Quickens

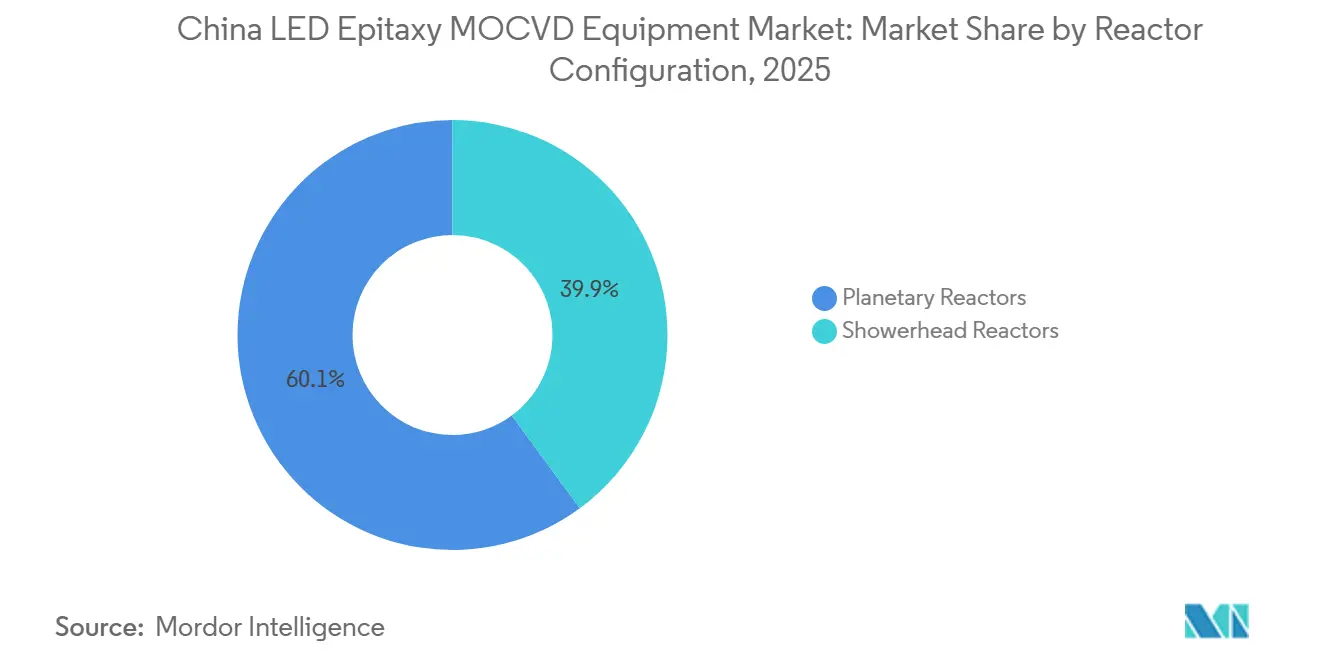

Planetary tools accounted for 60.09% of the market share in 2025 due to their established reliability in commodity output, where 8-12 nanometer peak-to-peak uniformity is sufficient. Close-coupled showerhead systems are projected to grow at 14.48% as display and automotive customers increasingly demand below 5 nanometer variation. These systems are gaining traction due to their ability to meet stringent uniformity requirements.

Showerhead reactors, with perpendicular gas flow reducing boundary layer effects, achieve sub-1% uniformity over 200 millimeter wafers while maintaining low defect densities. Domestic suppliers now match foreign benchmarks with advanced technology. Integrated in situ monitoring has further tightened process windows, catering to the needs of high-resolution devices.

By End User: Outsourced Epitaxy Gains Traction

Integrated device makers accounted for 71.64% of the market share in 2025 due to the advantages of vertical control, which eliminates merchant markups. This approach also accelerates recipe optimization, making it highly efficient. Large IDMs like Sanan have significantly scaled micro LED lines, with its Hubei complex alone allocating 120 reactors for RGB die production.

Foundry and merchant epi houses are expected to experience the strongest growth at 14.62% through 2031, driven by the preference of smartphone, tablet, and wearable brands for asset-light strategies. Outsourcing advanced die production helps brands avoid fixed investments of USD 150-250 million. It also allows them to benefit from foundry learning curves, which distribute costs across multiple clients, making this model particularly appealing for micro LED production, where yields remain unpredictable.

Geography Analysis

Fujian hosts the single largest cluster, anchored by Sanan’s Xiamen headquarters and adjacent suppliers. Together, they may hold one-third of the national reactors. Guangdong follows closely due to Shenzhen’s dense downstream ecosystem of handset, panel, and automotive lighting firms, which are now running qualification lines that demand high-uniformity tools.

In the Yangtze River Delta, Jiangsu and Zhejiang benefit from proximity to sapphire growers, financial markets, and export logistics. These factors make them natural homes for medium-scale foundries. Hubei has emerged as a micro display hub, where provincial incentives and available land enabled Sanan to begin constructing a multibillion-dollar tool park that promises to develop a local skills base supporting the broader region.

These coastal and central provinces share strict green factory codes that require ammonia and fluorine abatement, increasing both upfront and recurring costs. However, compliance spending is partially offset by shorter chemical supply chains. Domestic precursor plants in Zhejiang and Jiangsu now deliver within 48 hours, avoiding the longer shipping cycles of imported materials.
