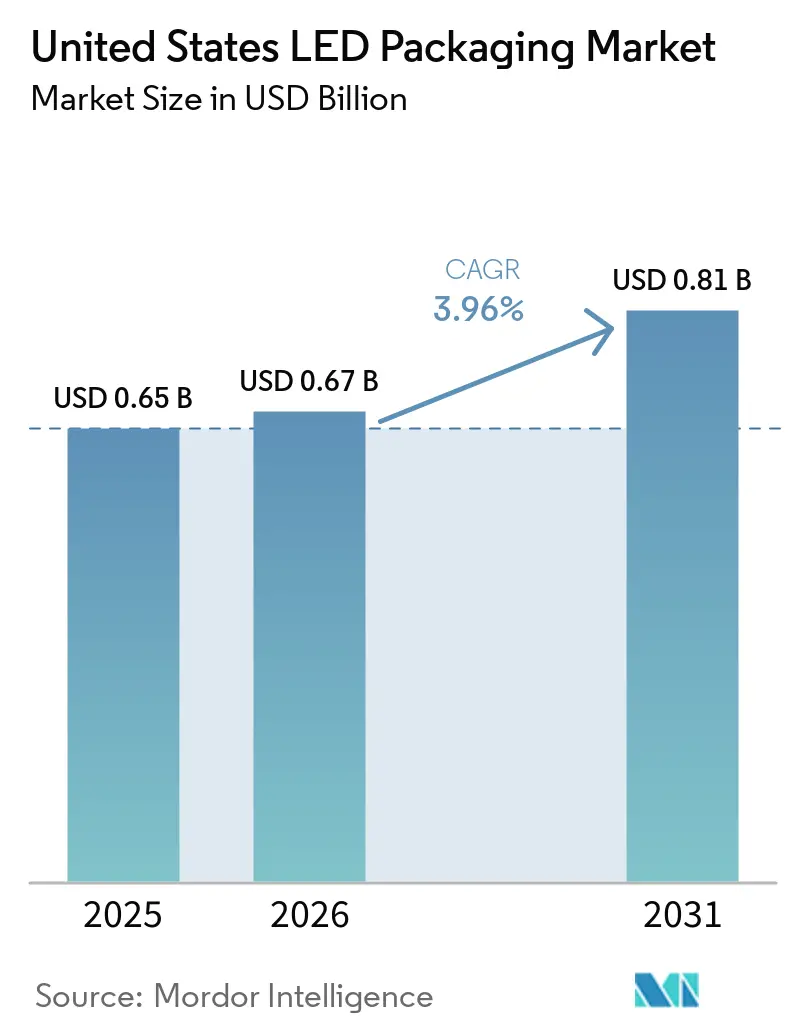

United States LED Packaging Market Trends and Insights

Surge In Mini-LED Backlight Adoption

Samsung and LG introduced RGB Mini-LED televisions featuring more than 1,000 dimming zones, tripling the LED count versus legacy edge-lit designs. The finer pitch demands chip scale packages under 1 mm², automated pick-and-place tools exceeding 100,000 units per hour, and enhanced thermal vias to keep junction temperatures below 85 °C, preserving color stability over product lifetimes.^{[1]Samsung Electronics America, “Samsung Expands 2026 TV Lineup,” news.samsung.com} Supply-chain learning curves have lowered average Mini-LED TV prices by nearly 30% over the past year, moving the technology from premium to mid-tier segments. For LED packagers, the architecture lifts revenue per panel because discrete red, green, and blue dies replace white LEDs plus quantum-dot films. Demand is strongest in consumer electronics assembly hubs in California and Texas, where rapid design cycles favor domestic suppliers capable of short lead times. The shift also stimulates investment in low-warpage metal-core printed circuit boards that dissipate hotspot heat in high-pixel-density arrays.

Tightening U.S. Energy-Efficiency Norms For Solid-State Lighting

The U.S. Department of Energy finalized a rule in April 2024 that raises general service lamp efficacy to roughly 120 lm W⁻¹ by July 2028, effectively eliminating most non-LED technologies.^{[2]U.S. Department of Energy, “Energy Conservation Standards for General Service Lamps,” federalregister.gov} LED packagers must therefore improve phosphor conversion efficiency and adopt low-thermal-resistance flip-chip designs that sustain high drive currents without color shift. Integrated lamps must now meet power-factor thresholds of 0.7 or higher, linking package thermal design with electronic driver performance. High-CRI and color-tunable products face steeper optimization trade-offs, prompting segmented product lines that separate compliance-focused models from premium human-centric lighting offerings. Over the long term, the rule supports a steady baseline of replacement demand, cushioning the LED packaging market against cyclical swings in new-construction spending.

Rapid Automotive LED Penetration In ADAS Sensors

Automakers are embedding infrared 940 nm emitters for driver-monitoring cameras, gesture recognition, and short-range LiDAR to meet upcoming European driver-distraction regulations. Automotive-qualified packages endure junction temperatures up to 125 °C and 1,000 thermal cycles per AEC-Q102 standards, favoring ceramic substrates and gold-tin eutectic die attach. ams OSRAM’s pixelated EVIYOS 2.0 device combines 25,600 controllable pixels within 40 mm², integrating illumination with depth-of-flight sensing in a single unit. Domestic capacity is emerging: Lumentum committed hundreds of millions of dollars to a Greensboro, North Carolina facility that will process indium phosphide lasers adaptable to automotive modules, with ramp-up targeted for 2028. The convergence of lighting and sensing is redefining package design around high-density interconnects and real-time thermal management.

Expansion Of Horticulture Lighting In Controlled-Environment Farming

Vertical farms and greenhouses are upgrading to multi-channel LED fixtures that deliver photosynthetic photon efficacy above 3.0 µmol J⁻¹ while allowing spectral tuning across blue, red, far-red, and UV wavelengths to optimize crop traits. The DesignLights Consortium’s horticultural v4.0 requirements tightened efficacy thresholds, prompting packagers to document photon flux and thermal performance at operating temperatures rather than ambient test points. University of Missouri extension guidance highlights the need for close-proximity mounting within 15 cm of plant canopies, remote driver placement, and IP65-rated enclosures, all of which influence package footprint, coating selection, and connector design. Growers evaluate total cost of ownership over 50,000-hour lifetimes, rewarding LED suppliers that can certify lumen maintenance and spectral stability and integrate with climate-control software. These dynamics boost demand for high-power packages with ceramic substrates and UV-stable encapsulants.

High Initial Capex For Advanced Packaging Lines

Setting up flip-chip bonding, chip scale package assembly, and automated optical inspection requires investments of USD 30 million to USD 80 million per site. Tool lead times often exceed 12 months, and only a handful of global vendors supply eutectic die-attach ovens, wafer-level phosphor coaters, and sub-0.2 mm pick-and-place systems. Although the CHIPS for America program awarded USD 1.4 billion for advanced-packaging pilot lines, first commercial volumes will serve high-margin microelectronics long before LED products. Many regional packagers therefore outsource critical steps to subcontractors in East Asia, incurring logistics costs and exposure to tariff swings. Access to affordable capital remains the primary barrier for smaller U.S. entrants wishing to target high-reliability automotive or horticulture niches.

IP Litigation Risks Around Flip-Chip Processes

Everlight filed U.S. lawsuits in February 2026 against both Lumileds and Seoul Semiconductor, alleging infringement of U.S. Patent 7,554,126 covering electrode-ratio optimization in flip-chip packages.^{[3]Everlight Electronics Co., Ltd., “LED Patent Infringement Lawsuit Against Lumileds,” en.everlight.com} Previous European decisions forced product recalls where Seoul’s WICOP technology was involved, demonstrating that injunctions can disrupt supply chains quickly. Licensing negotiations can add 5%-15% to bill-of-materials costs and delay launches by six to twelve months while freedom-to-operate analyses proceed. Large players mitigate exposure through cross-licensing, such as the broad October 2025 agreement between Nichia and ams OSRAM, but smaller firms without deep patent portfolios remain vulnerable. Higher insurance premiums and legal reserves further squeeze margins in already cost-competitive segments.

Segment Analysis

By Packaging Architecture: Compact Designs Propel CSP Uptake

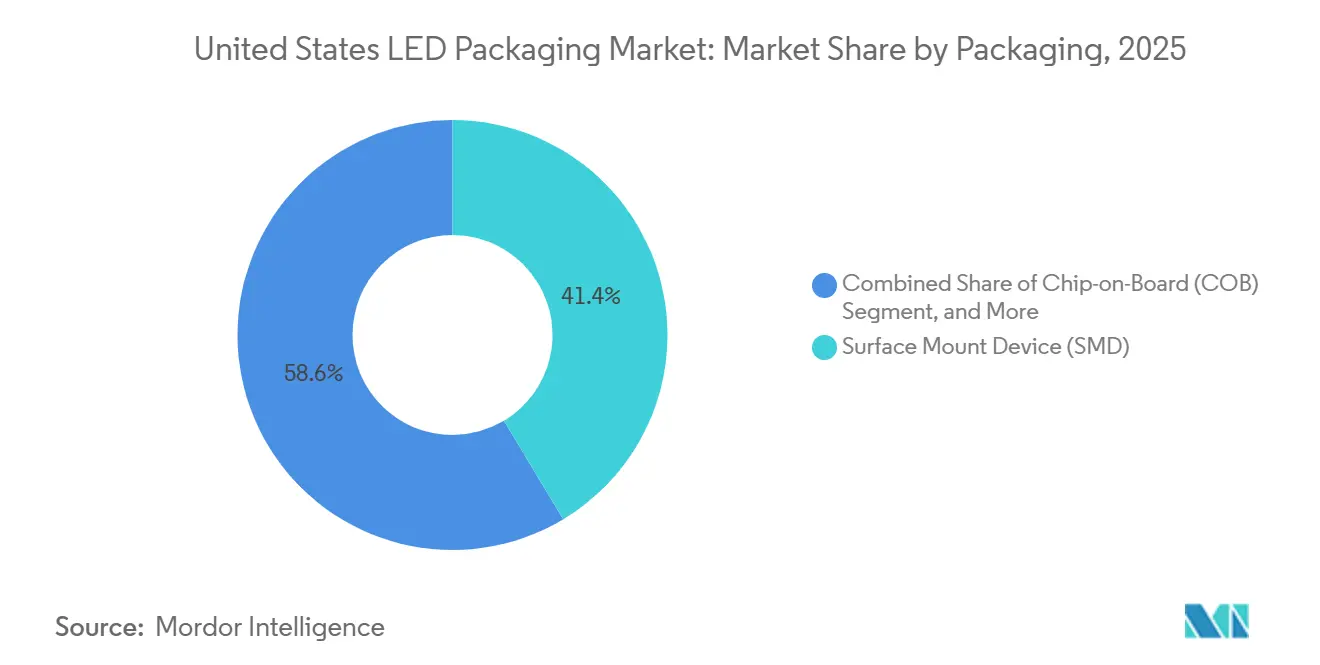

Chip scale packages account for the fastest growth trajectory, expanding at a 4.44% CAGR, as television makers and automotive OEMs demand sub-millimeter footprints that reduce optical losses and simplify assembly. Surface mount device formats still delivered the largest 41.38% LED packaging market share in 2025, supported by broad availability and well-established pick-and-place infrastructure.

The migration toward fine-pitch Mini-LED backlights and pixelated headlights is elevating interest in flip-chip architectures that eliminate top-side electrodes, trimming junction-to-case thermal resistance by up to 40%. Meanwhile, chip-on-board modules retain relevance in commercial downlights and horticulture fixtures where continuous high flux and uniform color output matter. Dual in-line and through-hole packages persist in retrofit signage but face erosion as automated surface-mount processes dominate. Integrated matrix device and glass-on-board concepts within the LED packaging market are emerging to co-package driver ICs, thermal spreaders, and optics for highly integrated displays, signaling a convergence of semiconductor and printed-circuit manufacturing disciplines.

By Power Class: High-Power Designs Capture New Regulatory Demand

Mid-power devices held 36.83% of the United States LED packaging market in 2025 value because they satisfy typical A-lamp and troffer requirements at modest cost, yet tightening efficacy rules favor consolidation into fewer, brighter packages. High-power modules (1-3 W) are therefore projected to outpace the overall LED packaging market size with a 4.21% CAGR, fueled by street-lighting retrofits, horticulture luminaires, and adaptive automotive beams that require sustained luminous flux.

Ultra-high-power units above 3 W confront thermal flux densities near 85 W cm⁻², compelling adoption of aluminum-nitride ceramics, vapor-chamber heat spreaders, and active cooling strategies. At the opposite end, low-power indicators lose relevance in general service lamps as minimum lumen thresholds rise. Rising drive currents are also directing R&D dollars toward high-reliability silver-sintered die attach and high-thermal-conductivity phosphor-silicone composites, maintaining performance even when junctions surpass 100 °C during automotive or horticultural duty cycles.

By Emission Type: UV Expansion Diversifies Revenue Streams

Visible LED packages dominated 88.47% of shipments of the United States LED packaging market in 2025in 2025, but ultraviolet devices show the strongest velocity, advancing at 4.39% a year on sterilization and resin-curing demand. UVA modules tuned near 365 nm enable rapid adhesive curing in electronics and automotive assembly lines, while UVC chips in the 260-280 nm band support water disinfection without mercury.

Package design must accommodate quartz windows or UV-stable silicones, as standard epoxies yellow under high-energy photons. Infrared emitters, particularly 830-940 nm VCSELs, are rising within driver-monitoring cameras and smartphone facial-recognition sensors, creating crossover opportunities for LED packaging industry players already supplying automotive headlamp arrays. These shifts reduce revenue dependence on traditional visible-light categories and encourage investment in specialized encapsulants, bond wires, and optical filters.

By Material Chemistry: Phosphor Innovation Enhances Spectral Control

Substrates led with 32.68% of LED packaging market share in 2025, reflecting sapphire, silicon, and ceramic wafers that anchor die and funnel heat. Nonetheless, phosphors and coatings record the highest 4.27% growth rate through 2031, driven by narrow-band red and green compositions that unlock BT.2020 and DCI-P3 color gamut compliance in premium displays.

Rare-earth volatility remains a core risk, as europium and terbium processing is heavily concentrated in China, prompting supply-chain dual-sourcing strategies and recycled phosphor initiatives. Encapsulation materials are shifting toward high-refractive-index silicones (n≈1.6) that raise light extraction by up to 15% while resisting photothermal degradation. In die-attach, gold-tin eutectic remains the benchmark for high-power reliability, although silver-sintered pastes are gaining acceptance because they eliminate voiding risk and match coefficient-of-thermal-expansion better than solders.

By Application: Automotive Lighting Outpaces General Illumination

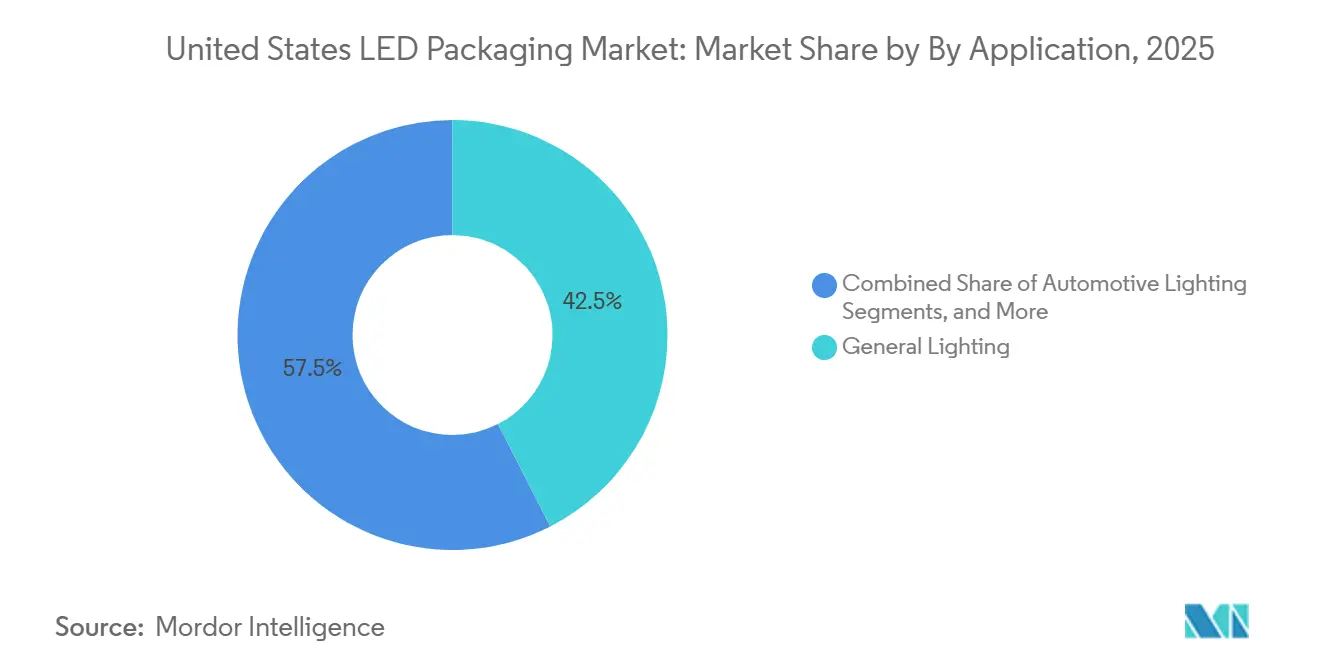

General lighting remained the largest end-use at 42.49% of the United States LED packaging market in 2025, but its growth moderates as replacement cycles lengthen and efficacy gains plateau. Automotive lighting, by contrast, is forecast to grow at a 4.16% CAGR, propelled by adaptive driving beams, projection-based communication, and the fusion of illumination with perception sensors.

Display and backlighting demand is diversifying from edge-lit white LEDs toward dense RGB Mini-LED grids, multiplying per-panel die counts and boosting revenue per square inch. Consumer electronics drive ultra-thin form factors and under-display sensor integration, rewarding package designs under 0.5 mm z-height. Industrial and specialty niches, including UV curing, machine vision, and medical diagnostics, favor hermetic sealing and ceramic substrates, maintaining premium margins despite modest volumes within the broader LED packaging market.

Geography Analysis

California, Texas, and Arizona anchor the nation’s largest concentration of LED packaging facilities, benefitting from proximity to consumer-electronics contract manufacturers, abundant engineering talent, and established semiconductor infrastructure. The CHIPS for America program’s pilot lines in Arizona and California are expected to lower substrate costs and accelerate adoption of fan-out wafer-level processes by late-decade.

Michigan, Ohio, and surrounding Great Lakes states experience strong pull-through from automotive OEMs integrating matrix headlamps, driver-monitoring systems, and short-range LiDAR modules. Regulatory alignment with forthcoming European distraction-warning mandates is already influencing domestic component specifications, elevating demand for AEC-Q102-qualified infrared packages.

Vertical-farm clusters in California, Colorado, and Arizona lead U.S. adoption of high-efficacy horticultural fixtures, intensifying local sourcing of high-power LED modules and phosphor blends tailored for specific crop spectra. Meanwhile, photonics research corridors in Massachusetts and New York advance silicon-photonics integration and quantum-dot hybrids, although commercial packaging volume largely remains concentrated in the Southwest and West Coast.
