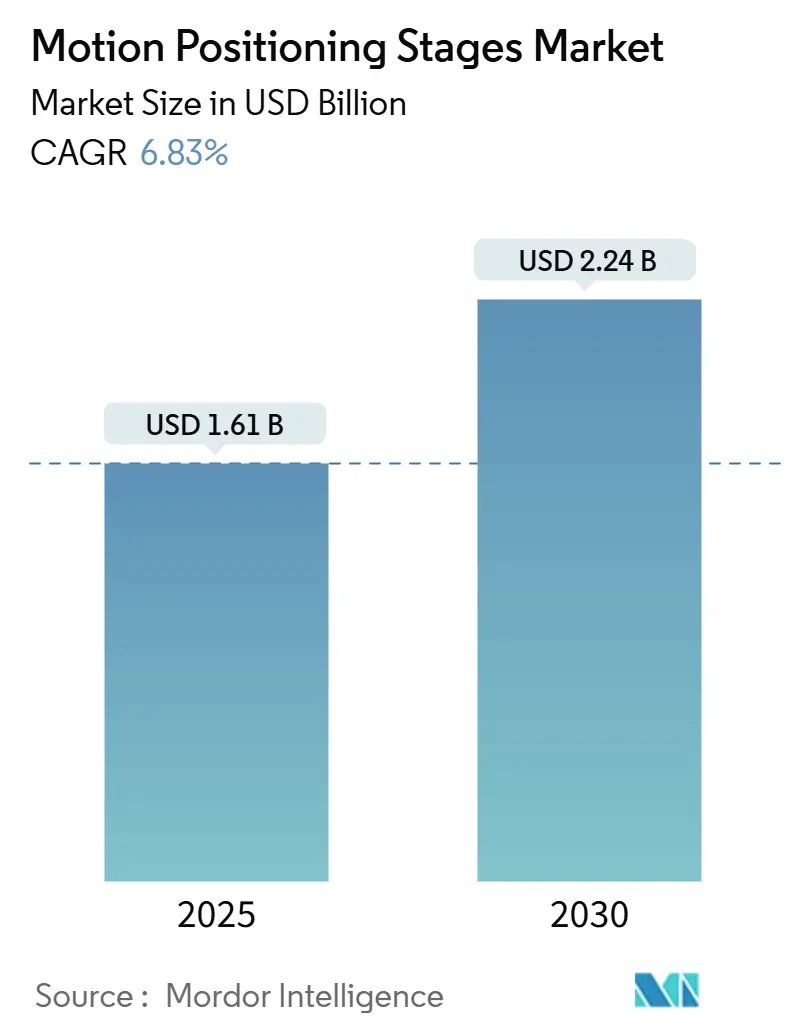

Global Motion Positioning Stages Market Trends and Insights

Accelerating Demand for Sub-Micron Semiconductor Lithography

Gate-all-around transistor roadmaps and backside power delivery are driving lithography toolmakers to specify reticle and wafer stages with repeatability of less than 5 nm. ASML’s extreme-ultraviolet scanners, which generated EUR 7.9 billion (USD 8.6 billion) in revenue in 2024, rely on magnetically levitated stages that achieve 2 nm accuracy across 150 mm travel ranges.^{[1]ASML Holding, “Annual Report 2024,” ASML.com} Taiwan Semiconductor Manufacturing Company’s 2 nm node, entering volume production in 2025, requires 1.5 nm overlay precision, prompting the adoption of interferometric feedback with picometer resolution. Intel’s USD 20 billion Arizona fabs feature 18 next-generation lithography systems, each embedding up to eight high-precision stages. High-numerical-aperture scanners expected in 2027 will push thermal-stability specs even lower, keeping demand elevated well into the forecast window.

Proliferation of High-Throughput Automated Microscopy Platforms

Drug discovery is shifting from manual slide review to robotic imaging that screens 384-well plates within minutes. Thermo Fisher Scientific’s CX7 platform positions samples with 0.5 µm repeatability at 50 mm s-1, enabling phenotypic assays across 10,000 fields of view per plate.^{[2]Thermo Fisher Scientific, “CX7 High-Content Screening Platform Product Launch,” ThermoFisher.com} The National Institutes of Health allocated USD 1.2 billion to shared instrumentation in 2024, with roughly one-third of the funds designated for automated imaging systems. Spatial transcriptomics workflows now require closed-loop Z-stages that maintain a 1 µm focus across large tissue sections. Combined, these factors reduce lead-optimization timelines by 40%, spurring laboratories to invest in higher-throughput motion platforms.

Rapid Adoption of Laser-Based Additive Manufacturing Lines

Metal additive manufacturing has moved from prototypes to serial production. General Electric’s Auburn plant produces 40,000 fuel nozzles annually using stages that maintain 20 µm accuracy across 400 mm build areas. The Federal Aviation Administration certified its first additively manufactured turbine blade in 2024, cementing traceability requirements that hinge on precise motion logs. Boeing’s USD 50 million additive facility adopted hybrid machines with rotary and linear stages to replicate complex blade profiles during repair cycles. These milestones validate high-precision motion as a production necessity rather than a research luxury.

Integration of Smart Encoders for Predictive Maintenance

Embedding temperature and vibration sensors inside linear encoders is lowering unplanned downtime. Siemens’ Sinumerik One platform ingests encoder telemetry and flags bearing degradation weeks in advance, allowing fabs to coordinate repairs during scheduled stops.^{[3]Siemens, “Sinumerik One CNC Platform Release,” Siemens.com} International Society of Automation studies show condition-based strategies trim downtime by up to 35%. As stages migrate into safety-critical proton-therapy gantries, smart encoders are becoming a de facto standard to satisfy functional-safety requirements.

High Initial Capital Outlay for Nanopositioning Systems

A closed-loop piezo stage with 100 µm travel typically costs USD 40,000-60,000, versus USD 8,000-12,000 for an open-loop motorized equivalent, a five-fold premium that strains university and start-up budgets. Import duties in emerging economies add another 15-25%, and ancillary infrastructure, such as vibration isolation, can tack on USD 10,000-20,000. Lease programs cut upfront spending by as much as 70%, but remain scarce outside North America and Western Europe.

Thermal Drift Challenges in Ultra-Precision Environments

Aluminum stages expand 23 µm m-1 °C-1, generating positional errors that exceed tolerances in sub-100 nm applications. Semiconductor metrology tools must be recalibrated every 30 minutes, which can trim throughput by up to 15%. Granite frames cut expansion fivefold but triple the mass, hampering dynamic performance. Active cooling adds cost and introduces new failure modes, while the absence of harmonized ISO test protocols forces buyers to conduct in-house validation that prolongs procurement cycles.

Segment Analysis

By Stage Type: Linear Stages Anchor Wafer Handling

Linear stages secured a 41.22% motion positioning stages market share in 2024, reflecting their embedded role in wafer transfer and inspection cells. Installed bases exceed 50,000 tool sets worldwide, each containing multiple axes. XYZ platforms are forecast to grow 7.91% as chiplet assembly mandates synchronous control across three translational axes. Rotary units remain vital for angular indexing in laser machining, albeit at lower growth rates. Gantry systems, meanwhile, are scaling in flat-panel display lines and large-format additive printing that require meter-scale work envelopes. Vendors now merge coarse linear travel with piezo tip-tilt inserts, simplifying the bill of materials and reducing system cost.

The migration from ball-screw to linear-motor drives triples acceleration and reduces maintenance needs. HIWIN reported 35% year-over-year growth in linear-motor shipments in 2024, as Chinese display makers retooled for 10.5-generation glass. Direct-drive rotary tables reduce backlash to under 1 arcsecond, meeting the specifications for fiber-optic connector alignment. Carbon-fiber gantry beams lower moving mass 40%, enabling faster traverse without compromising stiffness. Miniaturized XY stages with 50 mm footprints and 5 µm repeatability unlock handheld diagnostic devices, expanding addressable use cases.

Note: Segment shares of all individual segments available upon report purchase

By Drive Mechanism: Piezoelectric Gains on Motorized Incumbents

Motorized mechanisms accounted for 58.76% of 2024 revenue, primarily due to their long travel ranges and off-the-shelf controller compatibility. Piezoelectric platforms, however, are projected to grow at a 7.48% CAGR, buoyed by quantum computing labs that demand sub-nanometer resolution with minimal electromagnetic noise. Stroke limitations under 200 µm necessitate hybrid coarse-fine assemblies, which add mechanical complexity yet deliver unbeatable repeatability. Manual stages decline gradually but retain relevance in cost-constrained prototyping. Voice-coil and ultrasonic motors occupy niche roles, although Parker Hannifin’s hybrid coarse-linear plus piezo-fine stage, launched in 2024, signals the emergence of multi-mechanism architectures.

Multilayer actuator advances boosted piezo force output by 50% between 2020 and 2024, while reducing hysteresis to 5%. Absolute encoders now equip many motorized axes, eliminating the need for lengthy homing routines. Manual units gain digital readouts, blurring category lines and extending service life in semi-automated labs.

By Application: Life Sciences Outpaces Semiconductor Growth

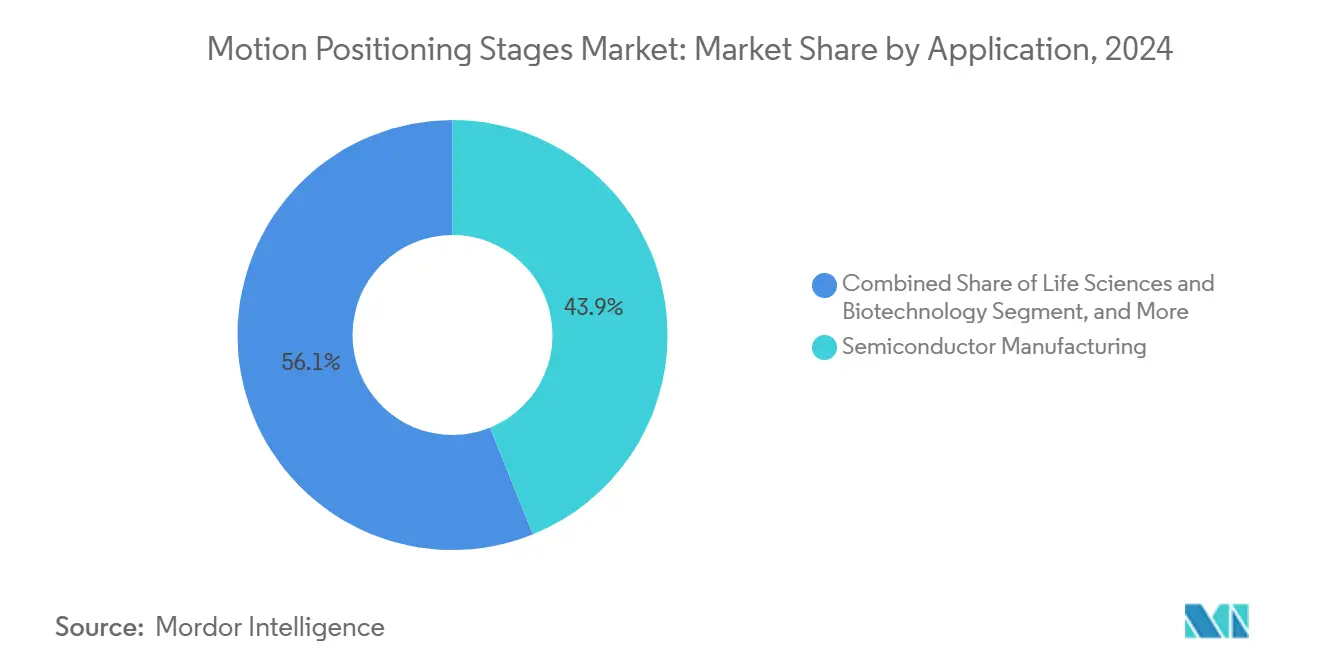

Semiconductor tools accounted for 43.89% of application revenue in 2024, driven by the pervasive need for motion across lithography, etch, clean, and metrology. The life sciences and biotechnology sector is projected to grow at an 8.13% CAGR to 2030, driven by the need for spatial biology workflows that require micron-level registration over extended time-lapse imaging. Optics and photonics benefit from data-center upgrades that require precise fiber alignment, while industrial automation offers steady retrofit demand in electronics assembly and battery manufacturing. Aerospace and defense, though lower in volume, commands premium pricing owing to MIL-STD qualification hurdles.

Spatial biology now involves imaging the same tissue section 20-40 times with different stains, requiring 1 µm registration over 12-hour scans. Illumina’s NovaSeq X leverages linear stages, achieving 0.3 µm repeatability to maintain 90% base-calling accuracy. Fast-steering mirrors on piezo tip-tilt platforms correct atmospheric turbulence in free-space optics. Collaborative robots integrate compliant stages that absorb positioning errors, broadening penetration in general manufacturing.

Note: Segment shares of all individual segments available upon report purchase

By End-User Industry: Healthcare Ascends Amid Robotics Surge

Electronics retained a 39.17% share in 2024 due to the high stage count inside semiconductor and display fabs. Healthcare, however, is expected to post a 7.83% CAGR as surgical robotics, digital pathology, and proton therapy embed high-accuracy motion. Automotive battery-cell lines require 0.5 mm placement accuracy during welding, fueling demand for rigid, high-payload stages. Aerospace and defense rely on radiation-hardened motion for orbital instruments. Research institutes, under budget constraints, consolidate purchasing into versatile motorized cores rather than niche piezo platforms.

Intuitive Surgical’s da Vinci robot uses six stages per arm to achieve 1-2 mm instrument placement. The U.S. Food and Drug Administration cleared the first fully digital pathology workflow in 2024, spurring hospitals to replace manual microscopes with automated scanners. Electronics plants deploy stages with integrated vision that cut surface-mount defect rates up to 30%.

Geography Analysis

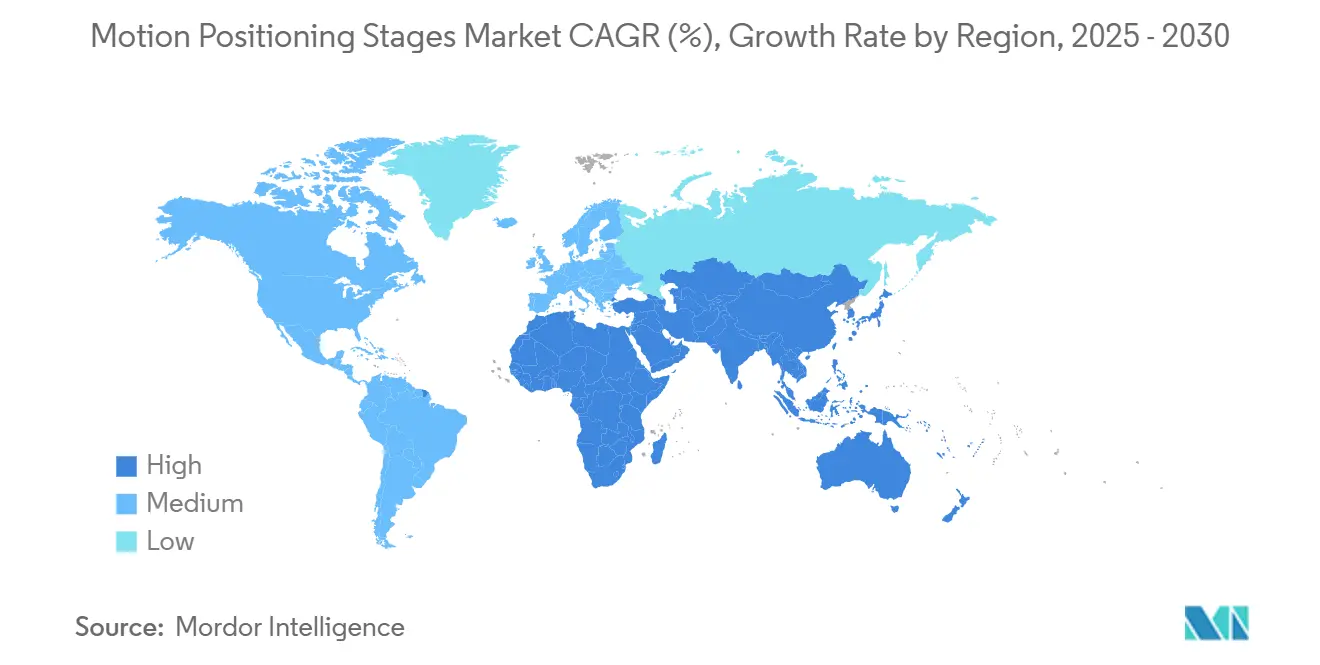

Asia-Pacific commanded 45.32% revenue in 2024, underpinned by China’s USD 143 billion semiconductor-fab pipeline and South Korea’s USD 44 billion memory expansions. Dense electronics clusters in the Pearl and Yangtze River Deltas source dozens of stages per factory line, reinforcing regional dominance. Japan sustains ultra-high-precision demand through Nikon and Canon tool sets, albeit with muted growth. India’s USD 2.3 billion incentive scheme is driving greenfield smartphone assembly, targeting mid-tier XY stages. Australia adopts automated mineral-analysis rigs employing linear motion under harsh mine-site conditions.

North America accounted for 28% of the revenue, driven by USD 52 billion in CHIPS Act subsidies that fund new fabs in Arizona, Ohio, and New York. Boston and San Francisco life-science clusters account for more than 300 automated microscopes shipped in 2024. Canada’s aerospace sector specifies 10-µm accuracy for turbine-blade repair rigs, while Mexico’s television factories are migrating to fully automated optical inspection, adding thousands of stage units annually.

Europe captured 22% of the revenue, with Germany’s machine-tool builders embedding stages in laser cutters and CNC centers, and the United Kingdom’s photonics firms ordering fiber-alignment platforms. The European Chips Act, budgeted at EUR 43 billion (USD 47 billion), is set to catalyze stage demand once fabs in Germany, France, and Italy break ground.

Africa is forecast to grow at a rate of 7.89% through 2030. South Africa’s automotive hubs localize sensor and ECU assembly, requiring precision pick-and-place stages. Egypt’s USD 1.8 billion electronics plan introduces motorized inspection stages into nascent lines. Middle Eastern diversification sees the United Arab Emirates’ aerospace composite shops adopting 5-axis motion for trimming carbon parts. South America accounts for 4.8% of the revenue; Brazil’s Embraer utilizes 50 µm-accuracy inspection stages, while Argentina’s lithium producers automate sample preparation under high tariff burdens.
