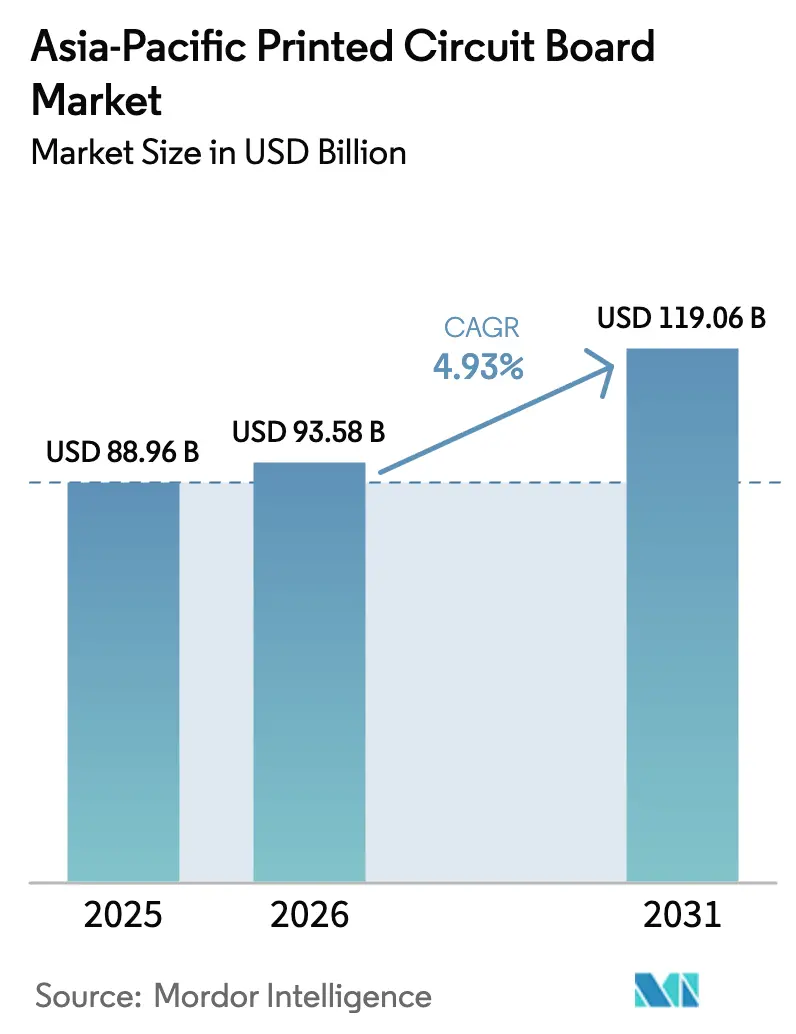

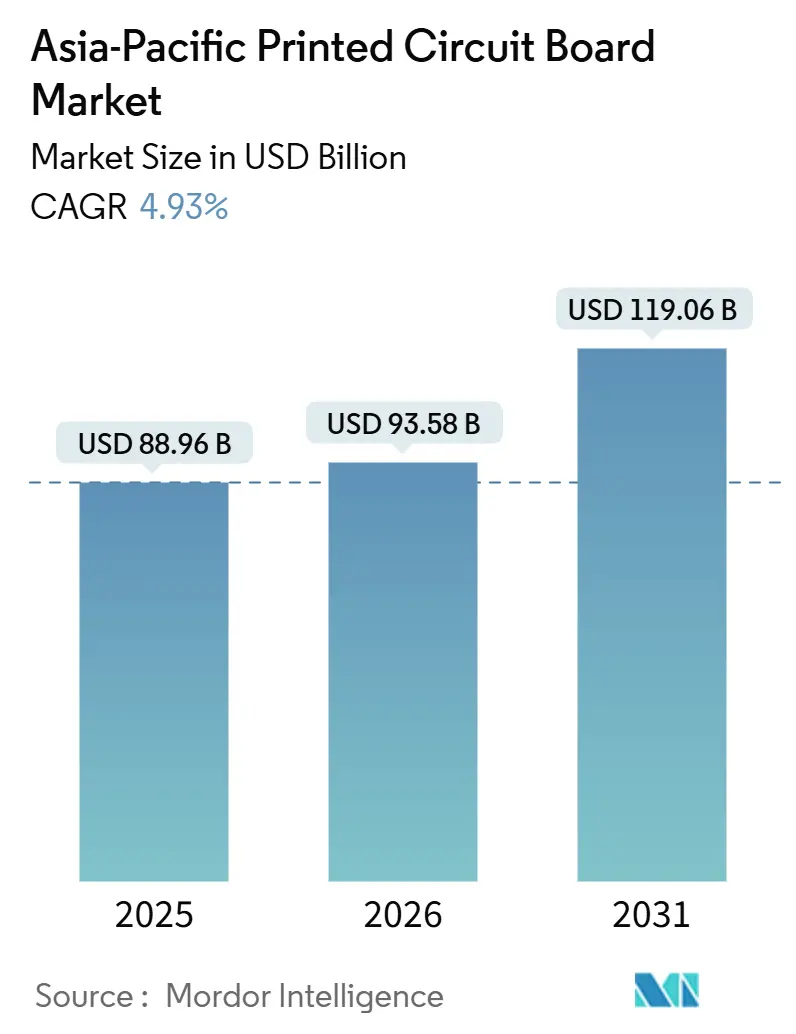

Asia-Pacific Printed Circuit Board Market Size & Share Analysis - Growth Trends and Forecast (2026 - 2031)

Asia-Pacific Printed Circuit Board Market Trends and Insights

Rising Miniaturization Requirements In Consumer Electronics

Foldable smartphones, smartwatches, and mixed-reality headsets now demand sub-50 micron trace widths and stacked micro-vias that conventional photolithography cannot pattern at acceptable yields. Samsung’s Galaxy Z Fold6 and Huawei’s Mate X5 employ eight-layer rigid-flex sections that survive more than 200,000 bend cycles without signal degradation, while Apple’s Vision Pro integrates a 14-layer HDI mainboard that cuts z-height by 18% through embedded passive components. Average smartphone layer count increased from 10 in 2023 to 12 in 2025, and flagship designs are targeting up to 16 layers by 2027, pushing fabricators to install modified semi-additive process lines that raise capital intensity by roughly 20%.

Expanding 5G Infrastructure Deployments

India operated 474,000 5G base stations by December 2025 and plans an additional 300,000 within a year, with each macro site using four to six multilayer boards that must withstand wide temperature swings and high humidity. China’s 4.76 million 5G sites are shifting toward network densification in industrial parks, increasing demand for ruggedized PCBs with extended vibration tolerance. Vietnam issued commercial 5G licenses in late 2024, and local-content rules implemented in 2025 drive domestic sourcing from Viettel High Tech. Open RAN architectures adopted in India and Japan further fragment design requirements and favor modular board layouts validated across several chipset ecosystems.

Accelerating Electric Vehicle Production Targets

China requires 45% EV penetration by 2027, a mandate that more than doubles automotive PCB area per vehicle. ^{[1]Ministry of Industry and Information Technology, “Notice on the Development Goals for New Energy Vehicles, 2025-2027,” miit.gov.cn} Japan’s Green Growth Strategy and South Korea’s K-Semiconductor tax credits spur new heavy-copper lines for zone controllers, while the International Energy Agency projects Asia-Pacific will need six times today’s power-electronics board capacity by 2030. ^{[2]International Energy Agency, “Global EV Outlook 2025,” iea.org} Each battery-electric platform now packs 2–3 m² of PCB real estate, roughly twice that of internal-combustion models, and high-voltage inverters specify 6-ounce copper to handle 105-amp continuous currents. India’s FAME-III scheme reimburses up to INR 1,50,000 per commercial EV and ties the incentive to 60% domestic PCB value addition, prompting Bharat FIH and Dixon to build local lines.

Shift Toward Module-Level System-in-Package Solutions

IPC’s 2025 roadmap documents a 28% jump in SiP layout requests, prodding fabricators to install 15-micron MSAP lines and plasma surface-finish tools. ^{[3]IPC, “Technology Roadmap 2025,” ipc.org} TSMC’s CoWoS-L uses 18-micron redistribution layers, trims package height 14%, and boosts substrate ASPs roughly 20%. Qualcomm’s Snapdragon X80 merges RF, PMIC, and memory dies on a 12-layer organic interposer, shrinking board area 35%. Apple’s M-series SiP embeds passive components to free DDR5 routing channels, demanding laminates with dielectric constants below 3.3 and dissipation factors under 0.005. The Open Compute Project’s Yosemite V3 specification mandates organic interposers for CPU cards, expanding substrate demand.

Supply Chain Disruptions For High-End Substrates

Ajinomoto’s Kawasaki plant expansion in 2024 lifted output by 20%, yet ABF film remained on allocation through 2025, stretching substrate lead times to 18 weeks and elevating working-capital burdens for smaller OEMs. Unimicron and Nan Ya PCB ran near 95% utilization, where defect rates rose to 12% because process windows narrowed. Alternate BT materials offered by Mitsubishi Gas Chemical lack the thermal cycling endurance needed for 400-watt server sockets, constraining substitution and delaying hyperscale platform launches.

Environmental Compliance Costs And E-Waste Regulations

China’s tightened Restriction of Hazardous Substances rules, effective January 2025, expanded mandatory third-party testing to industrial boards, adding roughly CNY 50,000 (USD 7,000) in annual costs per product family. Japan’s updated e-waste law imposed extended producer responsibility on PCB makers, requiring them to finance collection and recycling schemes that smaller firms struggle to absorb. South Korea introduced recycled-content quotas for FR-4 laminates in 2025, yet the insufficient supply of post-consumer epoxy forces manufacturers to purchase virgin resin at 8% premiums, compressing margins.

Segment Analysis

By PCB Type: Flexible Circuits Accelerate As Miniaturization Intensifies

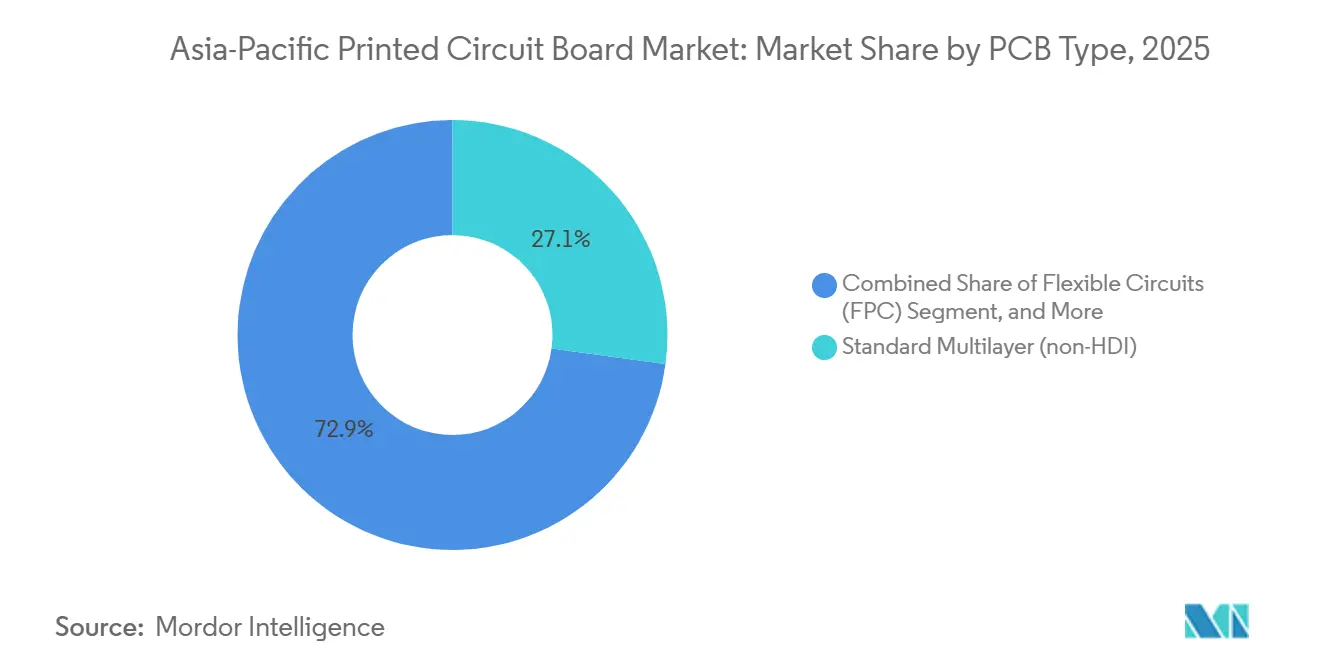

Standard multilayer boards, which accounted for 27.15% of the Asia-Pacific printed circuit board market in 2025, continue to anchor automotive body-control modules and industrial drives but face 3% to 4% annual price erosion as Chinese suppliers add capacity. High-density interconnect boards enable sub-100-micron vias and are now standard in flagship phones, while IC substrates ride the wave of AI-accelerator demand, which requires 30-layer builds with high glass-transition temperatures. Flexible circuits are expected to climb at a 5.24% growth pace from 2026 to 2031, eclipsing the broader 4.93% expansion of the Asia-Pacific PCB market. Smartphone OEMs pursuing foldable designs and wearable brands embedding biosensors into compact enclosures drive this momentum.

Rigid-flex assemblies are gaining traction in automotive ADAS and LiDAR modules, where flexibility cuts connector count and improves vibration tolerance. Metal-core and ceramic boards remain niche, accounting for less than 5% of regional revenue, serving high-heat LED and power-electronics applications. Capex trends signal sustained investment in flexible and HDI capacity, as evidenced by Tripod and Kinwong installing laser-direct imaging and plasma desmear lines that achieve 25-micron line-and-space geometries. As a result, suppliers positioned in these premium niches are securing longer order backlogs and higher asset turns compared with commodity multilayer producers.

Note: Segment shares of all individual segments available upon report purchase

By Substrate Material: High-Speed Laminates Gain Premium As Data Rates Rise

High-speed low-loss laminates are forecast to expand at a 5.61% clip through 2031, propelled by Ethernet switch upgrades to 800 G and 1.6 T that need dielectric constants below 3.5 and dissipation factors under 0.005. Glass-epoxy FR-4 retained 42.76% Asia-Pacific printed circuit board market share in 2025 due to its USD 8 per square meter cost advantage, yet hyperscale operators increasingly adopt premium Megtron 6 and Astra MT77 grades despite 30% higher laminate pricing. Polyimide, indispensable in flexible circuits, commands USD 40 to USD 50 per square meter because few suppliers match its thermal stability at 260 °C soldering profiles.

BT and ABF resins in IC substrates represent the fastest-growing subcategory, reflecting AI and high-performance computing rollouts. Ajinomoto controls about 70% of this segment and has successfully passed raw material inflation through to customers. Metal-core and ceramic substrates address demanding thermal conditions in RF amps and LED drivers, but collectively account for less than 4% of revenue. The introduction of stricter IPC-4101 flame-retardancy limits in 2024 required requalification for many laminate families, stretching new product introduction cycles by as much as nine months for automotive and aerospace programs.

By End-User Industry: Telecommunications Outpaces Consumer Electronics

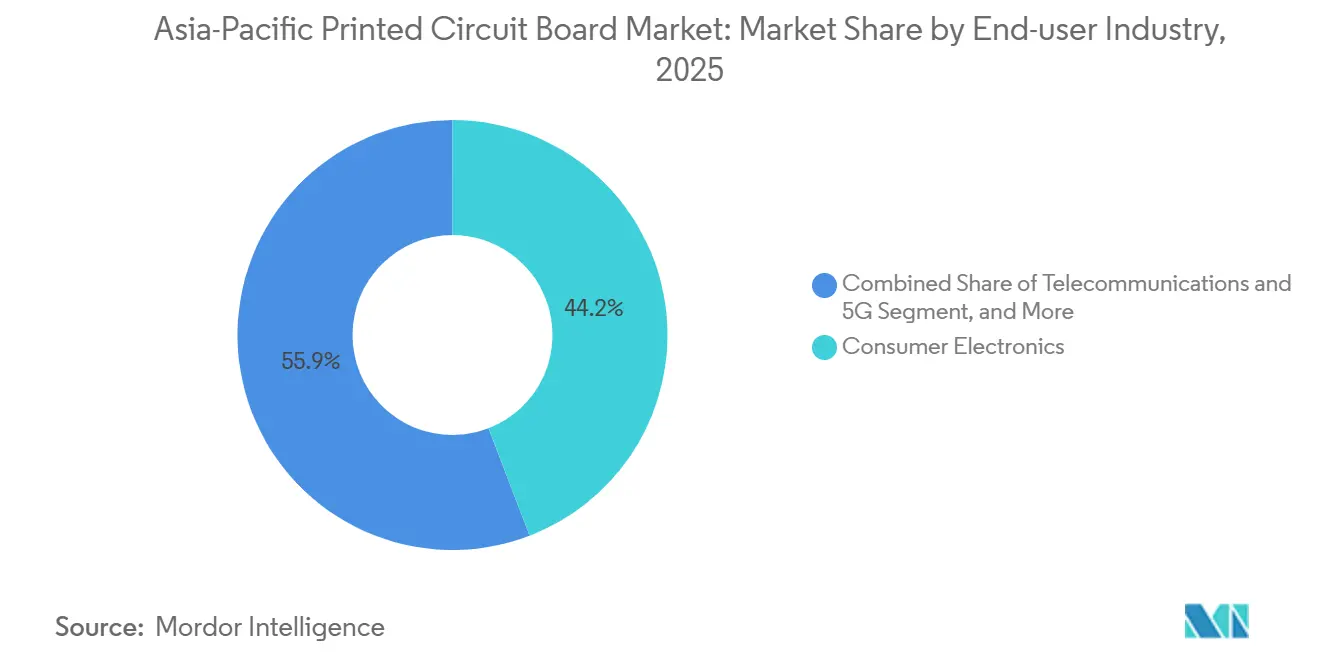

Consumer electronics still led revenue with 44.15% share in 2025, yet smartphone unit volumes plateau, so incremental PCB content arises from features like satellite connectivity rather than sheer shipment growth. Computing and data-center demand for 30-plus-layer motherboards accelerates alongside AI server deployments, a level of complexity that fewer than a dozen Asia-Pacific PCB market suppliers produce at yields above 80%. Telecommunications and 5G infrastructure are projected to advance at a 5.59% rate from 2026 to 2031, overtaking consumer electronics, which grows at 4.15%. Network densification in India and Vietnam requires ruggedized multilayer boards with conformal coatings, which add 12% to the bill of materials.

Automotive and EV platforms double PCB area compared with internal combustion vehicles, requiring heavy-copper boards for 105-amp continuous current. Industrial power electronics continue to specify thick-copper layouts for solar inverters, while medical wearables are migrating toward flexible circuits, even though regulatory approval cycles remain long. Aerospace and defense, though low in volume, command margin-rich contracts due to MIL-PRF and AS9100 traceability needs, reinforcing the value of certifications as competitive moats.

Note: Segment shares of all individual segments available upon report purchase

Geography Analysis

China’s 56.62% grip on the Asia-Pacific printed circuit board market in 2025 stemmed from unmatched supply-chain density, yet rising wages and tougher environmental rules are nudging capacity westward to Jiangxi and Hubei provinces. The government allocated CNY 15 billion (USD 2.1 billion) to support IC-substrate expansion, and Zhen Ding and Shennan Circuits each committed more than CNY 5 billion (USD 700 million) to capture domestic AI-chip demand. India, projected to post a 5.92% CAGR to 2031, benefits from Production Linked Incentive rebates that drive Dixon and Bharat FIH to build smartphone board lines, while additional 25% capital subsidies under the Electronics Component and Semiconductor Manufacturing scheme attract Taiwanese joint ventures.

Japan maintains leadership in high-layer-count FC-BGA substrates for server CPUs, with Ibiden and Shinko Electric accounting for roughly 60% of global output through proprietary resin and laser-drilling expertise. South Korean suppliers Samsung Electro-Mechanics and LG Innotek vertically integrate PCB capacity with handset and vehicle electronics divisions, cutting time-to-market for new modules and retaining margin that merchant fabs previously secured.

Taiwan, Vietnam, Thailand, and Malaysia together generated 20% of 2025 revenue. Taiwan’s Unimicron, Nan Ya PCB, and Tripod focus on modified semi-additive and laser-direct imaging investments aligned with TSMC’s packaging roadmap, whereas Vietnam and Thailand draw labor-intensive assembly after Chinese wage inflation. Malaysia’s Penang cluster diversifies into substrates, highlighted by AT&S pledging EUR 2 billion (USD 2.2 billion) for its Kulim plant due online in 2027.
